Cleaning DF
The Cleaning DF is an advanced line of wheeled cartridge filters equipped with an integrated centrifugal fan, designed to ensure maximum safety in the workplace.
The Cleaning DF range

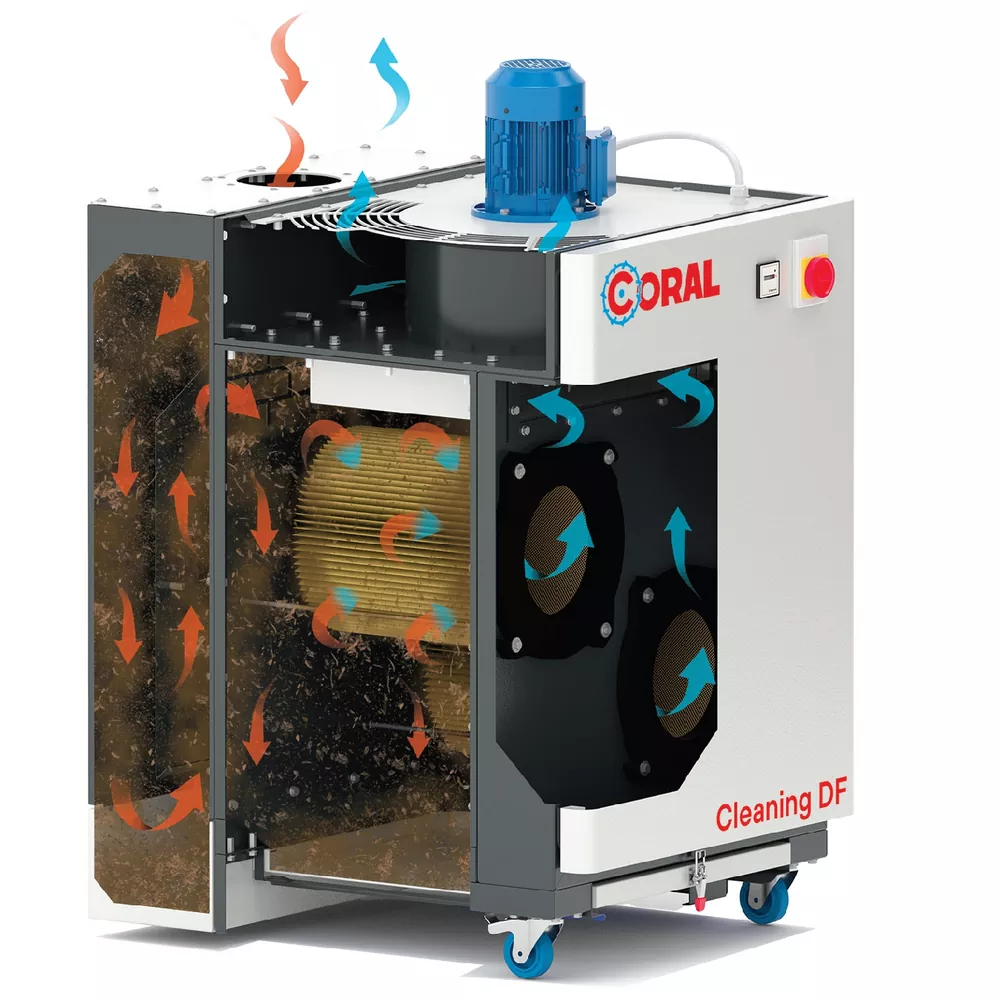

An industrial wheeled filter unit for extracting and filtering welding fumes while returning clean air to protect worker health. Its intelligent Down Flow Concept uses a separation prechamber to divide coarse dust from fine dust, extending the service life of the cellulose cartridges, which are positioned horizontally for convenient access and quick manual cleaning. A centrifugal fan drives high-efficiency horizontal filtration and clean-air expulsion. It is a Plug & Play solution requiring no fixed installation, supplied with Dynaflex or Evolution No Smoke self-supporting arms, and can be customised with activated-carbon cartridges for odour neutralisation, a HEPA H13-H14 plenum, or a soundproof plenum.
- Plug & Play wheeled solution requiring no fixed installation
- Supplied with Dynaflex or Evolution No Smoke self-supporting arms
- Horizontally positioned cartridges for easy access and quick manual cleaning
- High suction capacity with low-noise operation
- Down Flow Concept separates coarse and fine dust in targeted phases
- Customisable with activated-carbon cartridges for odour neutralisation
- Optional HEPA H13-H14 plenum or soundproof plenum
At a glance
Cleaning DF specifications
| Model | Filter material | IFA/BGIA class | Cartridges (nr) | Cartridge height (mm) | Cartridge Ø (mm) | Filter surface (m²) | Max flow (m³/h) | Max flow (cfm) | Revolutions (rpm) | Power (kW) | Noise dB(A) | Noise + soundproof plenum dB(A) | Fan | Cleaning | Voltage (V) | Frequency (Hz) | Tanks | Tank volume (lt) | Weight (kg) | Admitted arms | Arm Ø (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cleaning DF1 0.55 | Cellulose | M-CEL | 1 | 400 | 325 | 12 | 1400 | 826 | 2845 | 0.55 | 74 | 70 | PRM 220 | No | 230/400 | 50 | 2 | 24 | 105 | 1 | 150 |
| Cleaning DF1 0.75 | Cellulose | M-CEL | 1 | 400 | 325 | 12 | 1450 | 856 | 2845 | 0.75 | 75 | 70.5 | PRM 220 | No | 230/400 | 50 | 2 | 24 | 110 | 1 | 150 |
| Cleaning DF2 1.1 | Cellulose | M-CEL | 2 | 400 | 325 | 24 | 1880 | 1109 | 2845 | 1.1 | 74 | 69 | PRM 250 | No | 230/400 | 50 | 2 | 40 | 145 | 1 | 150 |
| Cleaning DF2 2.2 | Cellulose | M-CEL | 2 | 400 | 325 | 24 | 2280 | 1345 | 2845 | 2.2 | 74.5 | 70 | PRM 250 | No | 230/400 | 50 | 2 | 40 | 160 | 2 | 150 |
Pollutants captured
