Dynaflex
Full-length flexible suction arm that can be conveniently moved and repositioned.
Extraction Arms
The Dynaflex range
The Dynaflex is a suction arm that is flexible along its entire length, allowing it to be conveniently moved and repositioned to reach the most functional position for suction of pollutants. It is a competitively priced solution for the extraction of welding fumes from various production processes. The arm is built from the fully flexible No Smoke Flex hose, fitted with an ergonomic polypropylene Windhood hood and an integrated control damper, and offers simple assembly and maintenance. It is available for wall (W) or cart/trolley (C) mounting.
Dynaflex 160/2 CCart-mounted, Ø160 mm, 2 m armDynaflex 160/3 CCart-mounted, Ø160 mm, 3 m armDynaflex 160/4 CCart-mounted, Ø160 mm, 4 m armDynaflex 160/2 WWall-mounted, Ø160 mm, 2 m armDynaflex 160/3 WWall-mounted, Ø160 mm, 3 m armDynaflex 160/4 WWall-mounted, Ø160 mm, 4 m arm
- Flexible along its entire length for easy movement and repositioning
- Built from the fully flexible No Smoke Flex arm

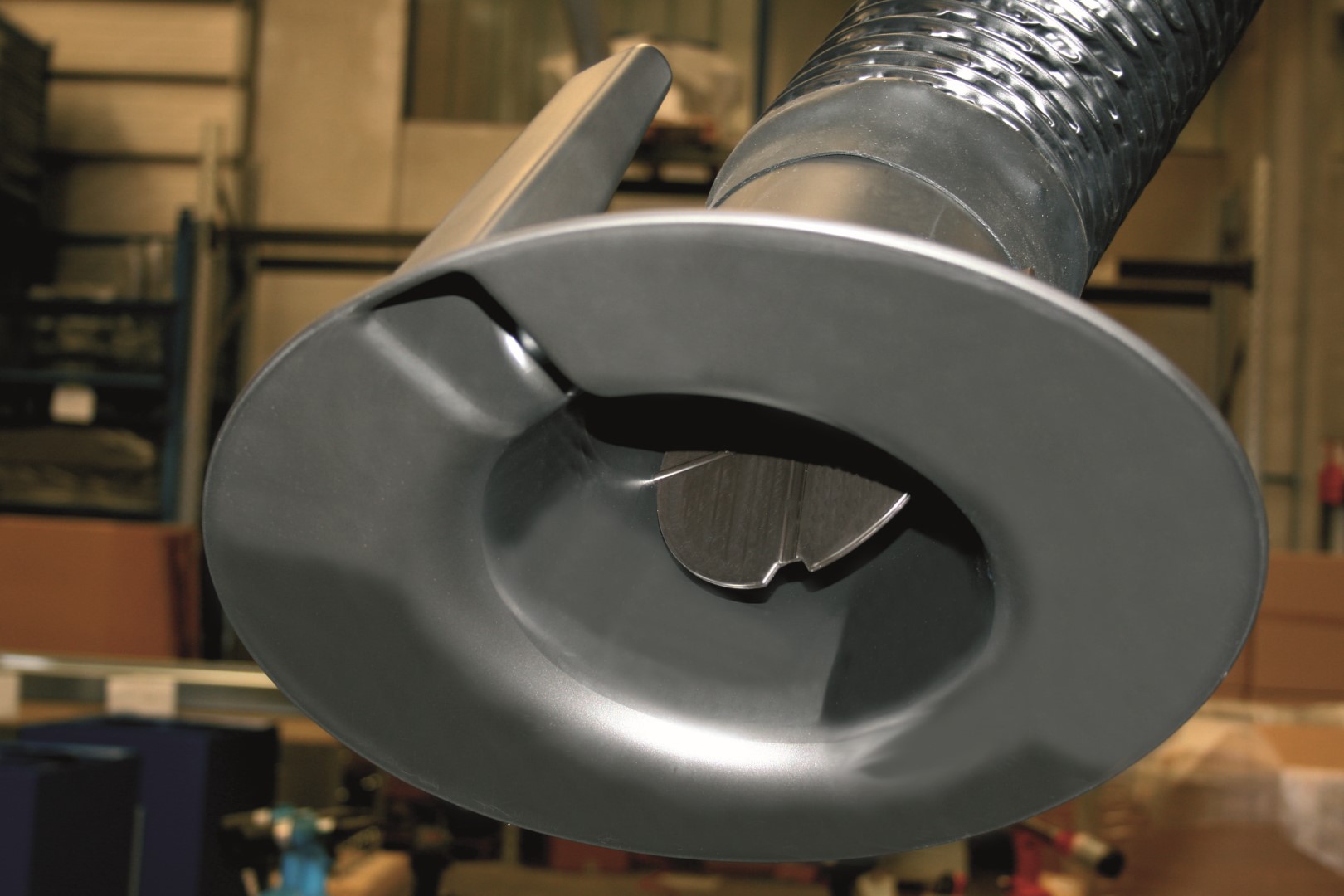

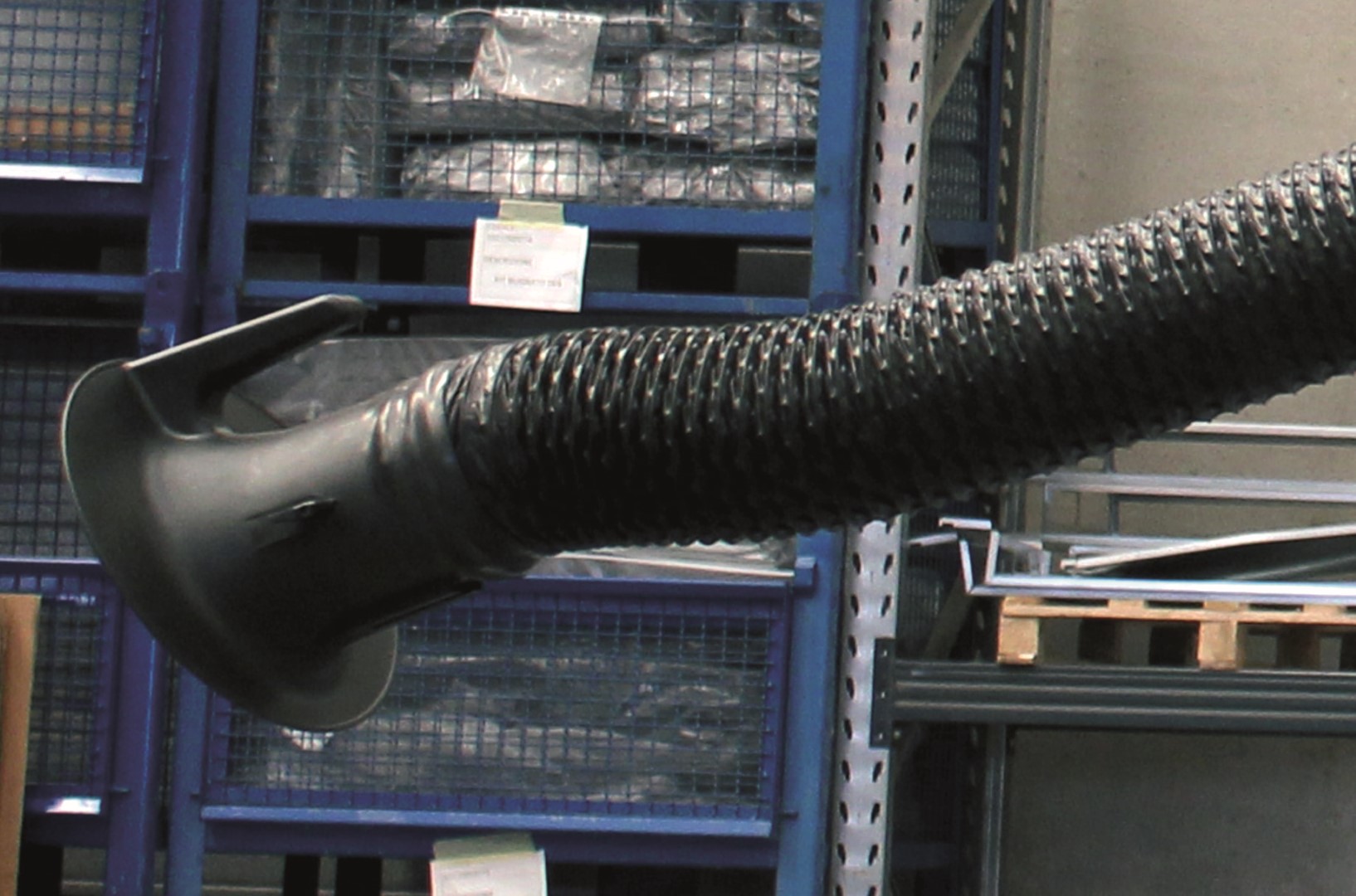

- Ergonomic polypropylene Windhood hood
- Integrated control damper

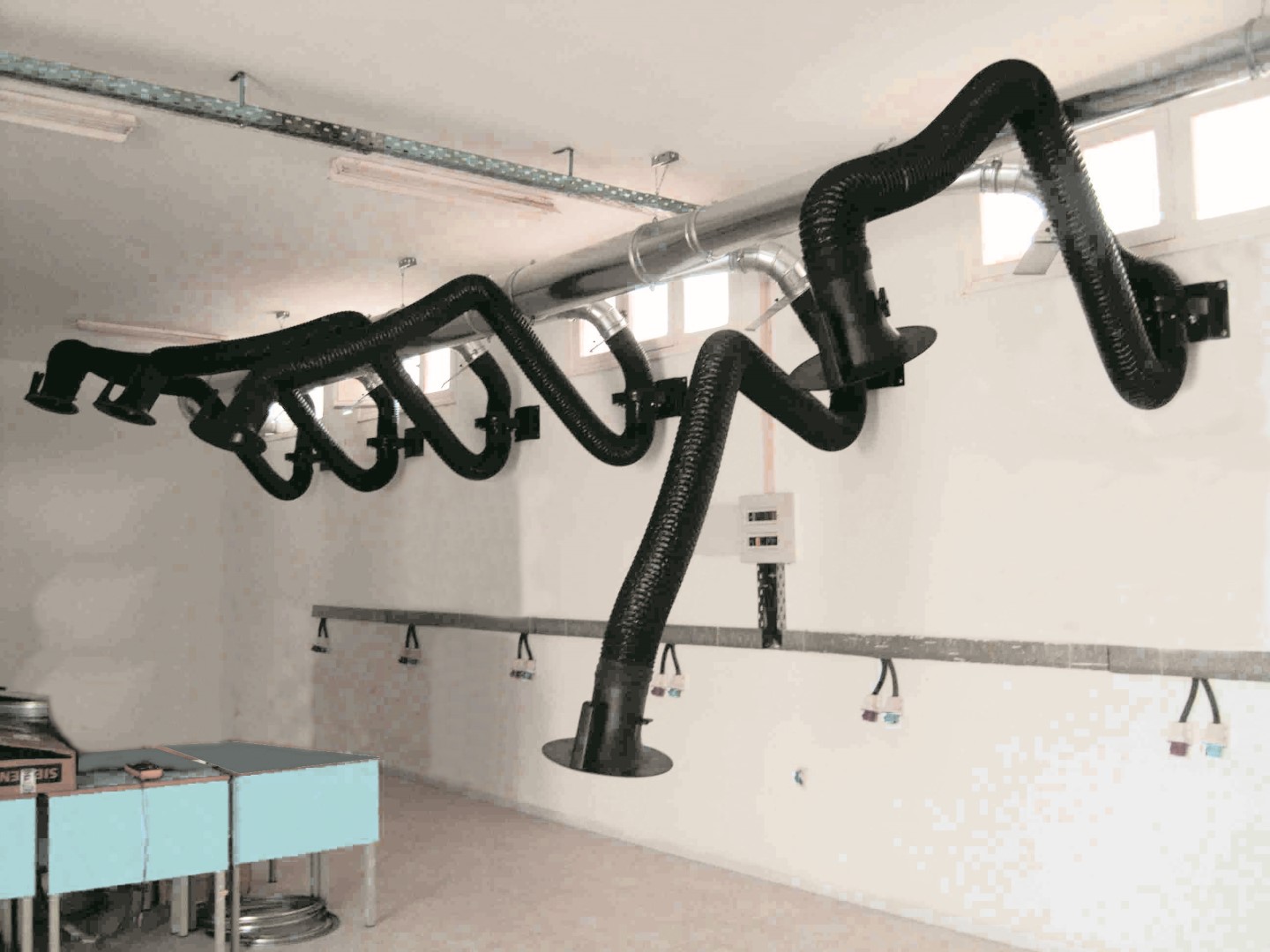

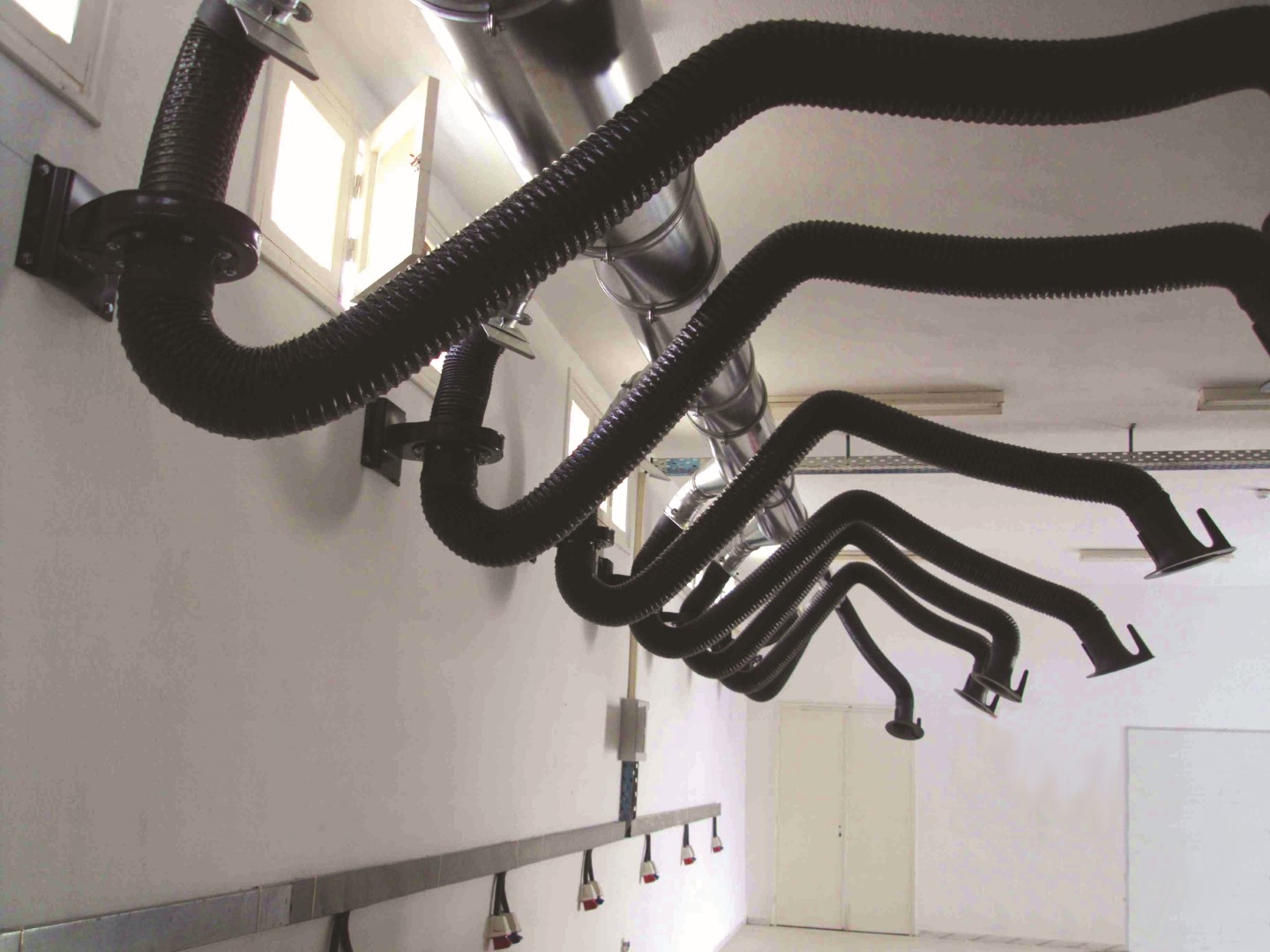

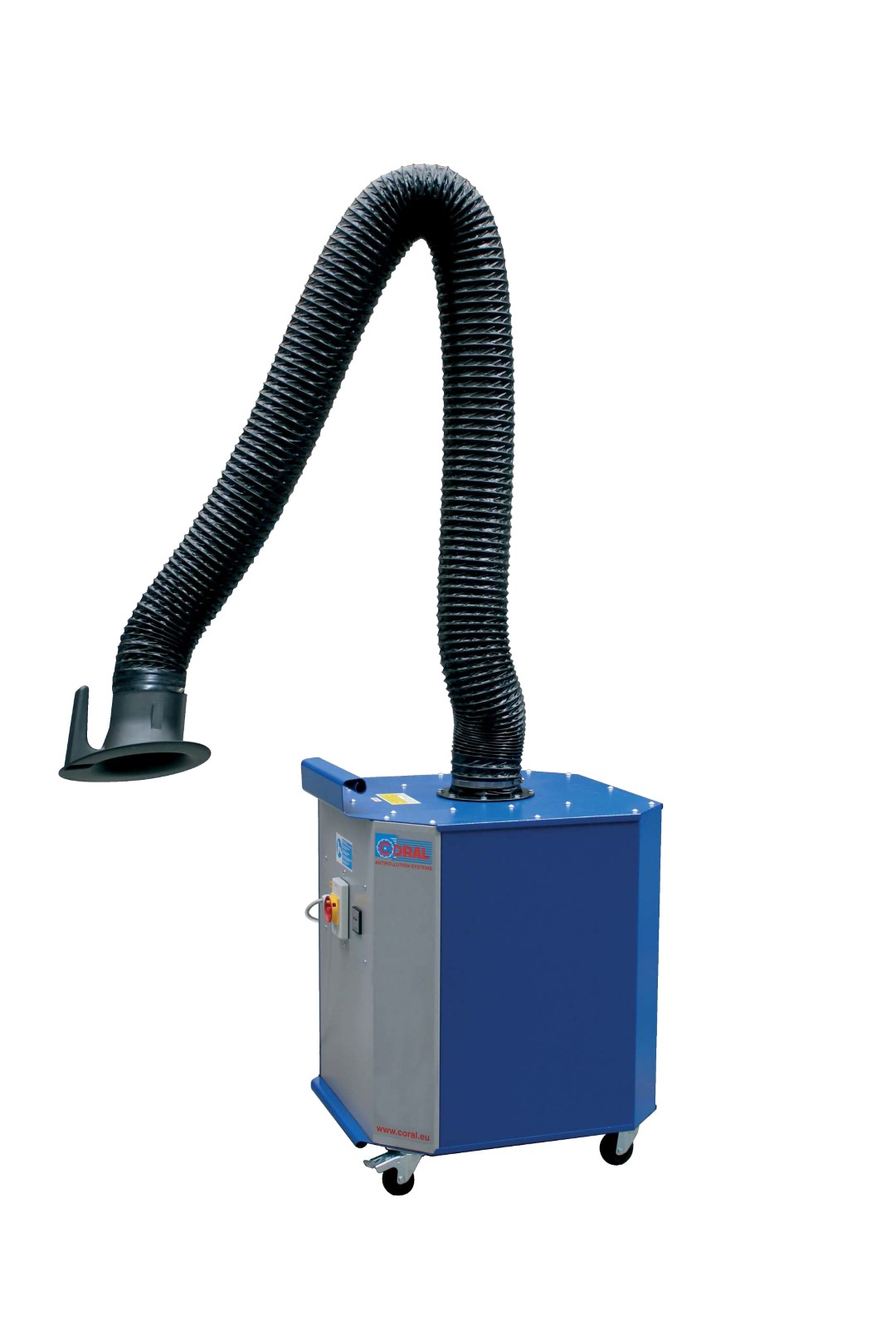

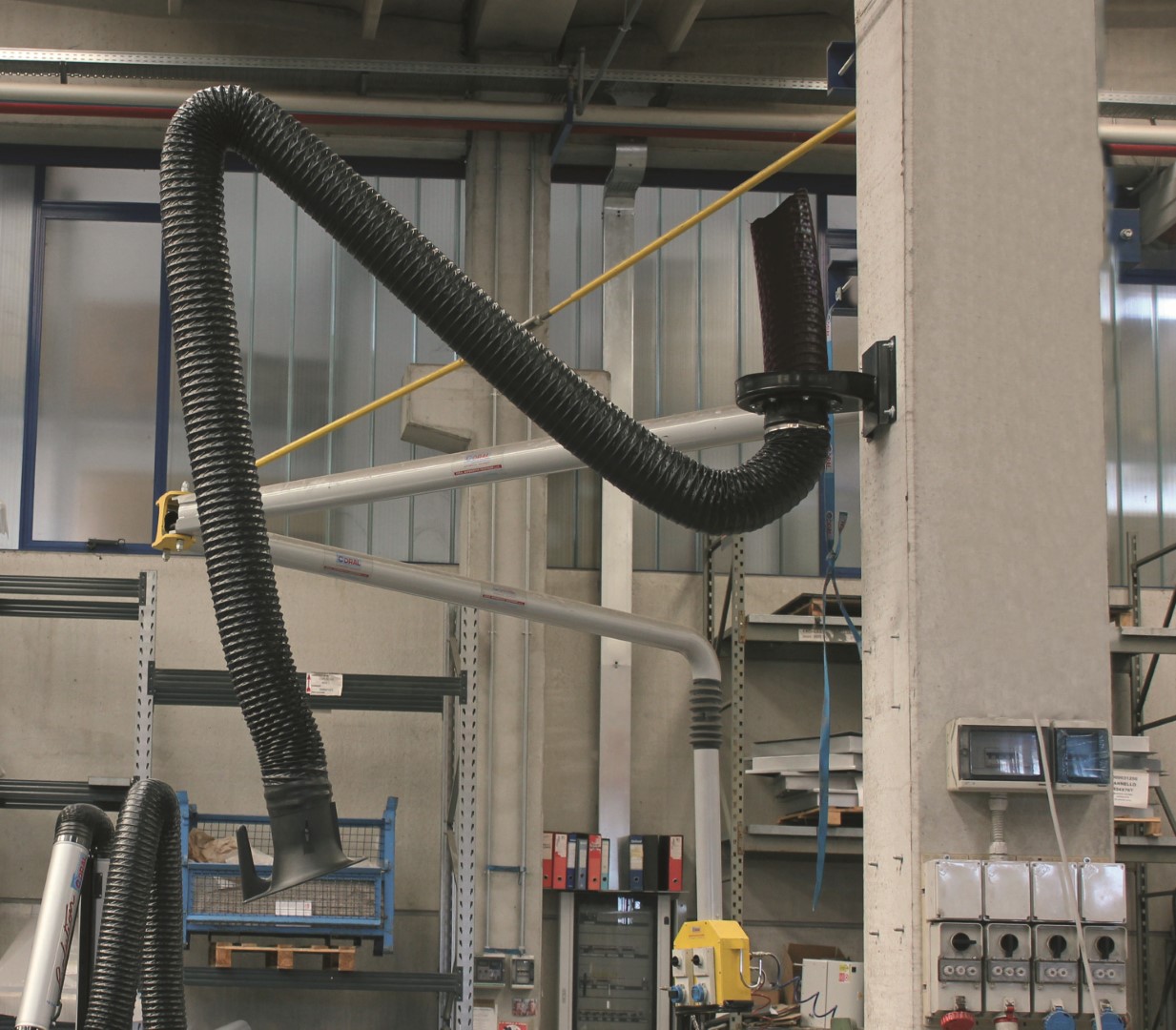

- Available for wall (W) or cart (C) mounting
- Simple assembly and maintenance
Specifications
At a glance
Ø160 mmArm diameter
2 / 3 / 4 mArm lengths
Up to 1325 m3/hFlow rate
Dynaflex specifications
| Model | Flow rate (m3/h) | Pressure (mmH2O) | Pressure (Pa) | Diameter (mm) |
|---|---|---|---|---|
| Dynaflex 160/2 C | 950 | 89 | 873 | 160 |
| Dynaflex 160/3 C | 1025 | 108 | 1059 | 160 |
| Dynaflex 160/4 C | 1100 | 125 | 1226 | 160 |
| Dynaflex 160/2 W | 1220 | 147 | 1442 | 160 |
| Dynaflex 160/3 W | 1300 | 170 | 1668 | 160 |
| Dynaflex 160/4 W | 1325 | 190 | 1864 | 160 |
Handles
Pollutants captured
