Extraction Arms

Evolution No Smoke ATEX

ATEX 2014/34/EU certified fume extraction suction arm, designed for suction of dust and hazardous substances in potentially explosive environments with ATEX-classified smoke and dust.

Enquire
Evolution No Smoke ATEX filter units
Extraction Arms

The Evolution No Smoke ATEX range

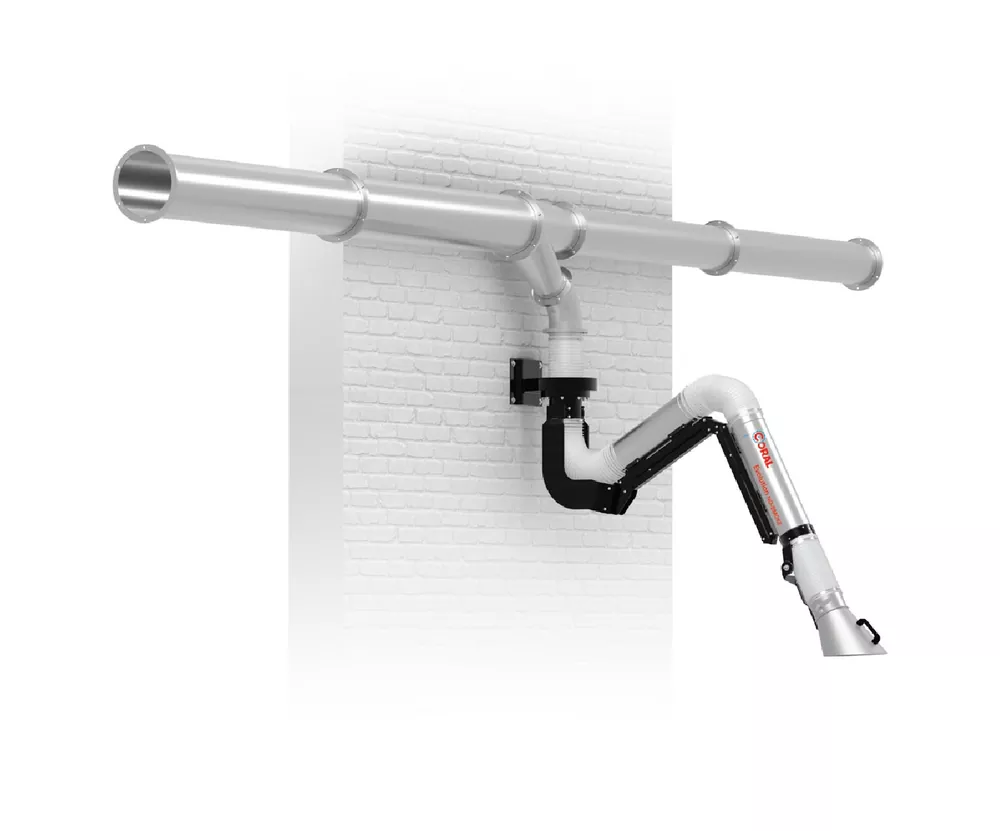

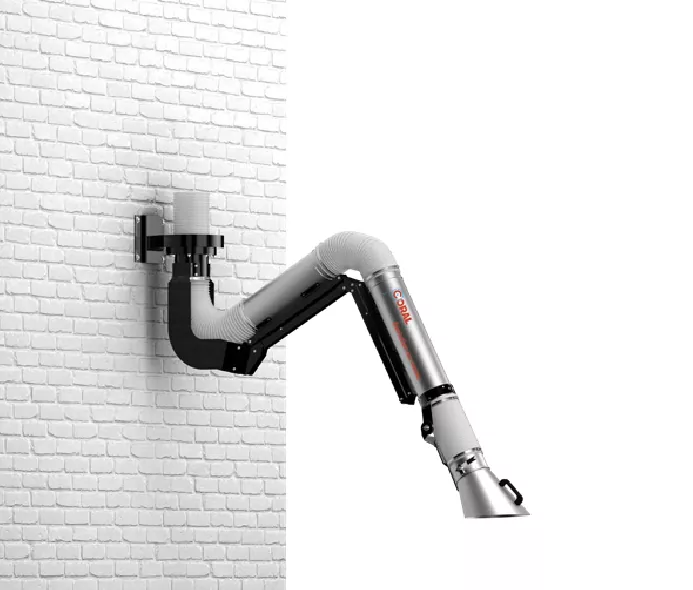

The Evolution No Smoke ATEX is an extraction arm whose rigid piping, hardware, slewing ring (fifth wheel), damper and extractor hood are made of AISI 316 stainless steel sheet. The materials are suitable for complete grounding of electrostatic charges, making the arm compatible with use in zones 21 and 1 and with ST3-rated powders. Its stainless-steel construction makes it perfect for food, aerospace, pharmaceutical and chemical applications. It shares the patented external articulated joint system of the Evolution No Smoke line for easy movement and low pressure losses, and is available in wall-mounted and trolley versions across a range of diameters and arm lengths.

Evolution No-Smoke ATEX (Wall-mounted)ATEXDiameters Ø100 to Ø250 mm, arm lengths 2.1 m to 4 m (Ø100/2.1, Ø100/2.7, Ø125/3, Ø125/4, Ø160/3, Ø160/4, Ø180/3, Ø180/4, Ø200/3, Ø200/4, Ø250/3, Ø250/4).Evolution No-Smoke ATEX (Trolley)ATEXDiameters Ø100 to Ø200 mm (Ø100/2.1, Ø100/2.7, Ø125/3, Ø125/4, Ø160/4, Ø180/3, Ø180/4, Ø200/3, Ø200/4).
  • Rigid piping, hardware, slewing ring, damper and extractor hood made of AISI 316 stainless steel sheet
  • Suitable for complete grounding of electrostatic charges
  • Compatible with use in zones 21 and 1 and with ST3-rated powders
  • ATEX 2014/34/EU certified
  • Perfect for food, aerospace, pharmaceutical and chemical applications
  • Available in wall-mounted and trolley versions
Enquire about this product
Specifications

At a glance

2014/34/EUATEX certification
AISI 316Stainless steel construction
Ø100-250 mmDiameter range
2.1-4 mArm length range

Evolution No Smoke ATEX specifications

ModelMountingDiameter (mm)Arm length (mm)Weight (kg)
Evolution No-Smoke ATEX Ø 100/2.1Wall100210018
Evolution No-Smoke ATEX Ø 100/2.7Wall100270020
Evolution No-Smoke ATEX Ø 125/3Wall125300025
Evolution No-Smoke ATEX Ø 125/4Wall125400020
Evolution No-Smoke ATEX Ø 160/3Wall1603000-
Evolution No-Smoke ATEX Ø 160/4Wall1604000-
Evolution No-Smoke ATEX Ø 180/3Wall180300028
Evolution No-Smoke ATEX Ø 180/4Wall180400037
Evolution No-Smoke ATEX Ø 200/3Wall200300050
Evolution No-Smoke ATEX Ø 200/4Wall200400042
Evolution No-Smoke ATEX Ø 250/3Wall2503000-
Evolution No-Smoke ATEX Ø 250/4Wall2504000-
Evolution No-Smoke ATEX Ø 100/2.1Trolley1002100-
Evolution No-Smoke ATEX Ø 100/2.7Trolley1002700-
Evolution No-Smoke ATEX Ø 125/3Trolley1253000-
Evolution No-Smoke ATEX Ø 125/4Trolley1254000-
Evolution No-Smoke ATEX Ø 160/4Trolley1604000-
Evolution No-Smoke ATEX Ø 180/3Trolley1803000-
Evolution No-Smoke ATEX Ø 180/4Trolley1804000-
Evolution No-Smoke ATEX Ø 200/3Trolley2003000-
Evolution No-Smoke ATEX Ø 200/4Trolley2004000-
Handles

Pollutants captured

DustHazardous substancesATEX-classified smoke and dust
