Wheeled / Mobile Filters
Handy
Wheeled filter purifier for suction and filtration of dust and wood chips.
Wheeled / Mobile Filters
The Handy range

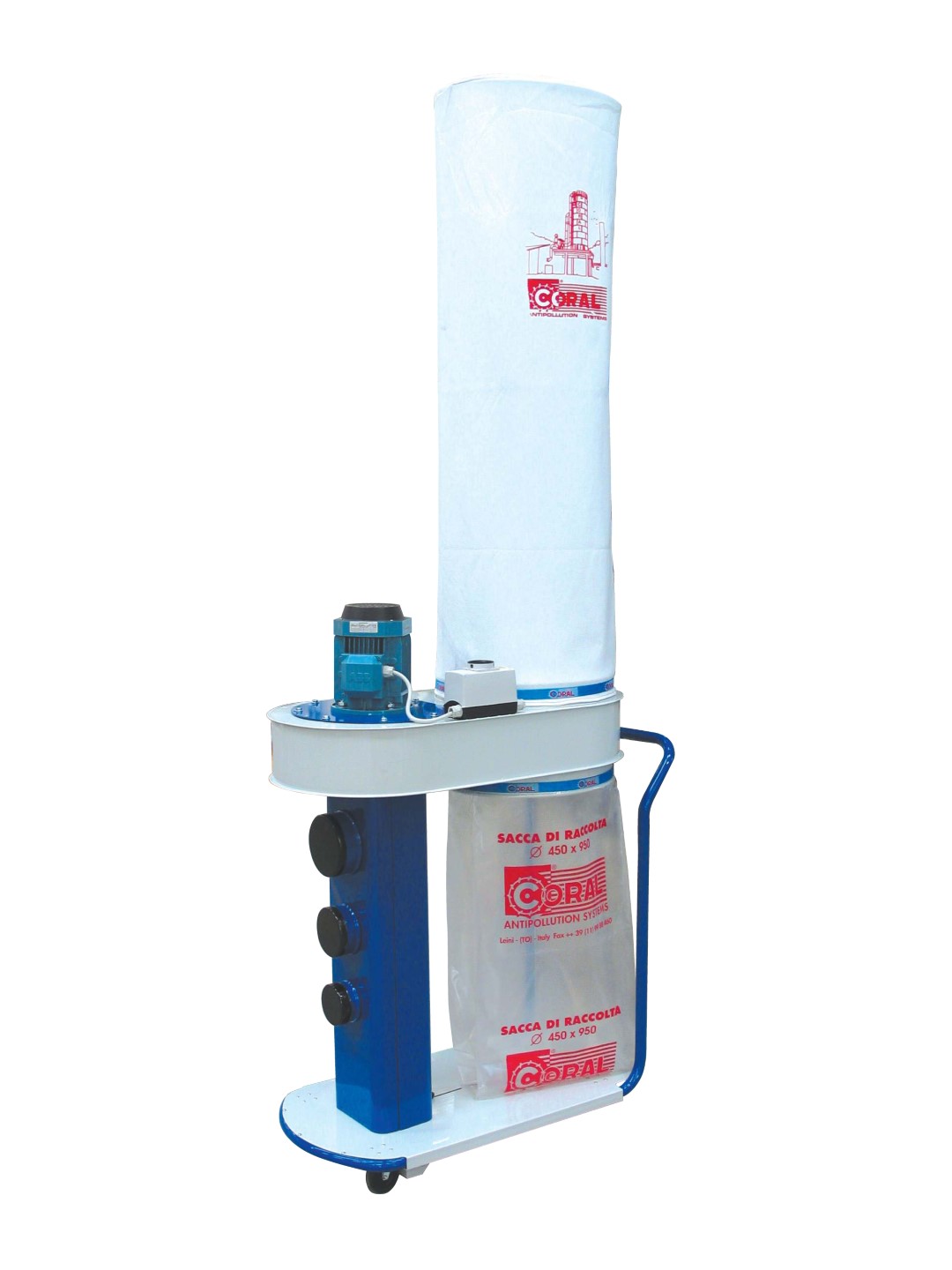

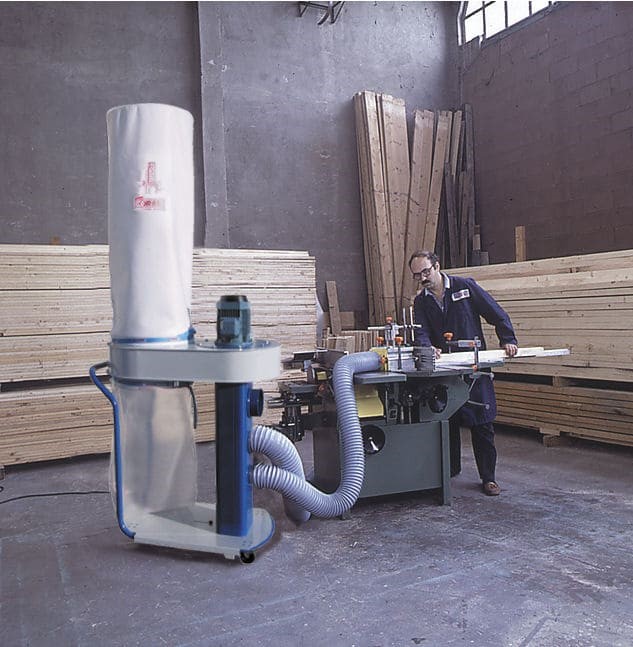

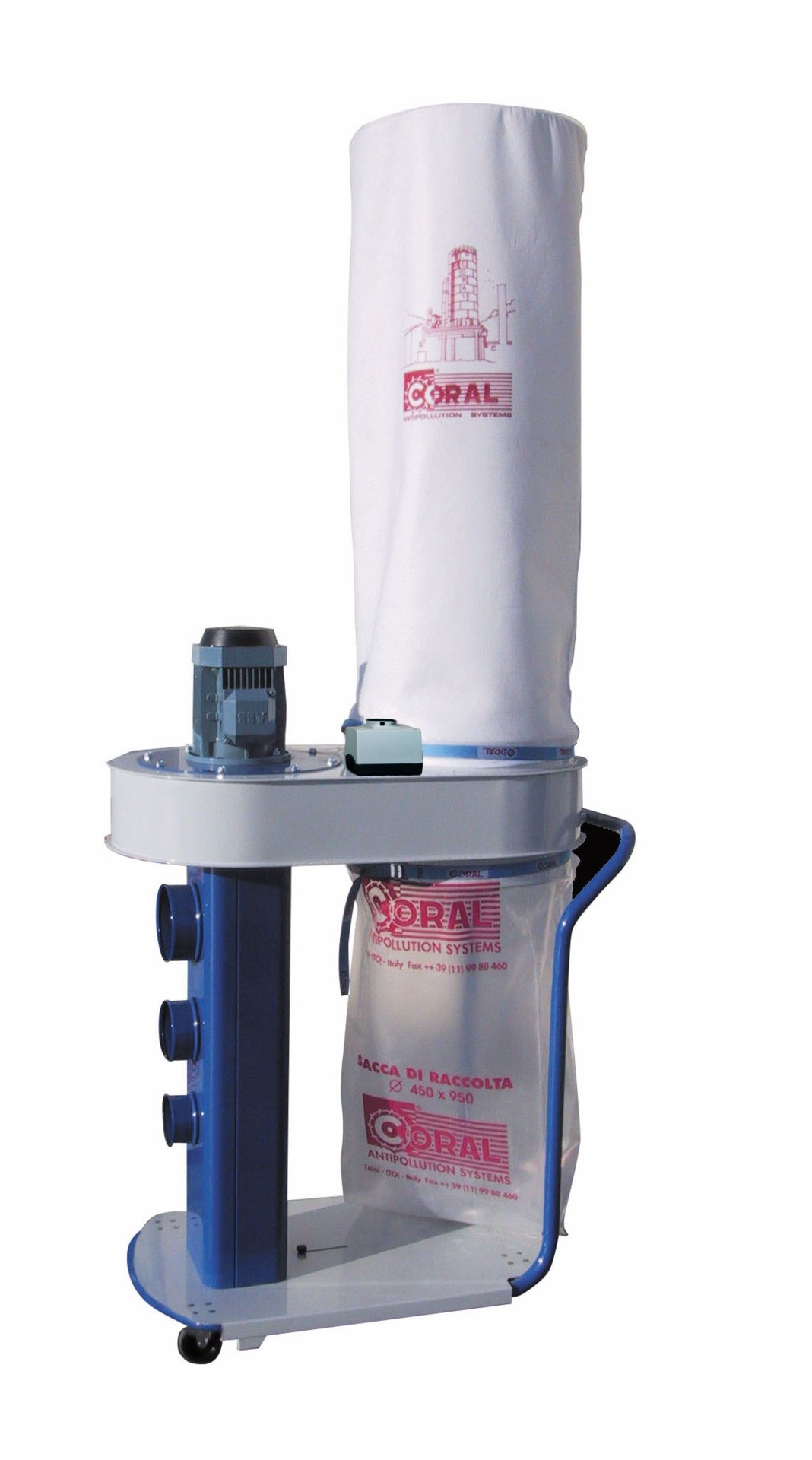

The Handy is a wheeled filter-purifier for the suction and filtration of dust and wood chips. It is supplied complete with a polyester filter sleeve, a capacious plastic collection bag, a CE-compliant thermal switch and a steel fan. It offers three suction ports of 100, 120 and 150 mm diameter plus a floor suction port, is extremely easy to maintain, and is a Plug & Play solution requiring no installation.
Handy 10.75 kW (1 HP), 1.9 m² filter surface, 1200 mm bag.Handy 21.5 kW (2 HP), 2.2 m² filter surface, 1500 mm bag.
- Complete with polyester filter sleeve
- Capacious plastic collection bag
- CE-compliant thermal switch
- Steel fan
- Three suction ports of 100, 120 and 150 mm diameter plus one floor suction port
- Extreme ease of maintenance
- Plug & Play solution, no installation required
Specifications
At a glance
up to 2250 m³/hMaximum flow rate
1.9–2.2 m²Filter surface area
0.75–1.5 kWPower range
2Models available
Handy specifications
| Model | Filter surface (m²) | Max flow (m³/h) | Max flow (cfm) | Revolutions (rpm) | Power (kW) | Power (HP) | Inputs (nr) | Input size (mm) | Bags (nr) | Bag height (mm) | Bag Ø (mm) | Voltage (V) | Frequency (Hz) | Capacity (lt) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Handy 1 | 1.9 | 1500 | 882 | 2800 | 0.75 | 1 | 3 | 100 / 120 / 150 | 1 | 1200 | 450 | 230/400 | 50 | 110 | 48 |
| Handy 2 | 2.2 | 2250 | 1324 | 2800 | 1.5 | 2 | 3 | 100 / 120 / 150 | 1 | 1500 | 450 | 230/400 | 50 | 110 | 53 |
Handles
Pollutants captured
