Cartridge Filters
The Iperfilter DF range

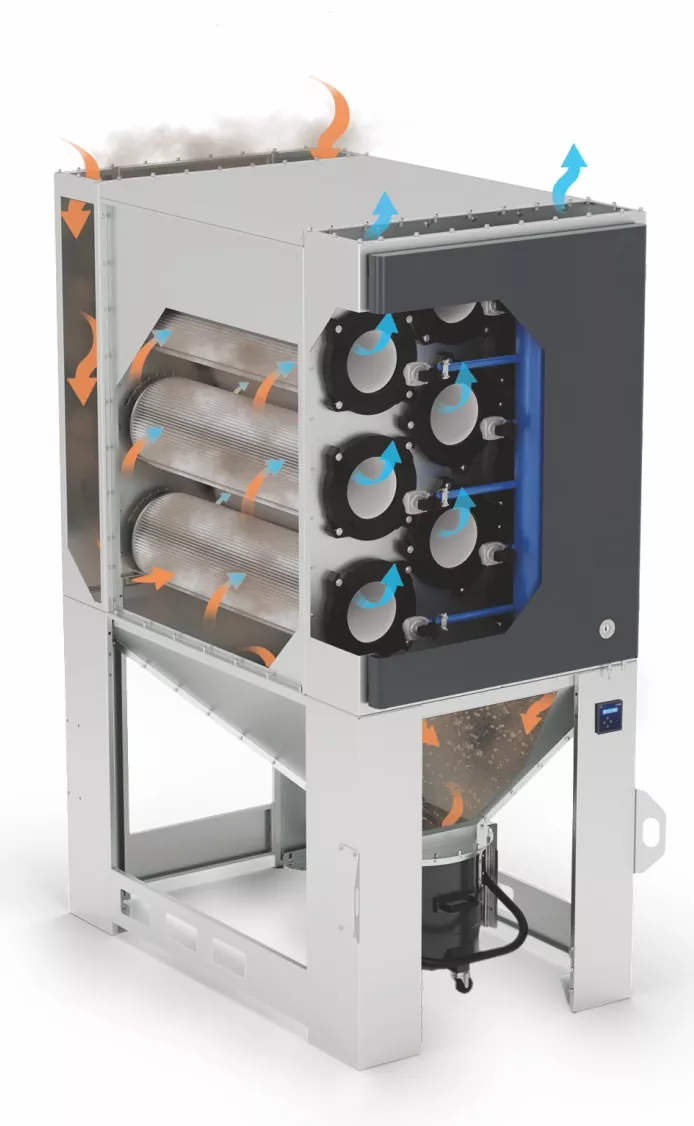

The Coral Iperfilter DF is designed for high-performance industrial dust removal. It features horizontal filter cartridges housed in a sealed central chamber, delivering consistently clean and safe air through a multi-stage filtration process: initial gravitational separation of large particles (an abrupt reduction in speed causes the particles to precipitate into the hopper), cartridge filtration from outside-to-inside (retaining dust externally), and automated compressed-air cleaning cycles managed by an economizer. IFA/BGIA M-PES-certified polyester cartridges are fitted as standard, with alternative media available on request.
Iperfilter DF 1212 cartridges; 240 m² filter surface; 12,000 m³/h; 750 kg; overall height 3100 mm.Iperfilter DF 99 cartridges; 180 m² filter surface; 9500 m³/h; 640 kg; overall height 2690 mm.
- Optimal dust separation via abrupt speed reduction causing particle precipitation into the hopper
- Effective outside-to-inside cartridge filtration retaining dust externally
- Automated cleaning with economizer-managed compressed-air jets
- IFA/BGIA M-PES-certified polyester cartridges (standard); alternative media on request
- Reliable and versatile across applications
Specifications
At a glance
9500-12,000 m³/hMax flow rate
180-240 m²Filter surface
9 / 12Cartridges
4-6 barTank pressure
640-750 kgWeight
Iperfilter DF specifications
| Model | Max flow (m³/h) | Filter surface (m²) | Cartridges (nr) | Cartridge height (mm) | Cartridge Ø (mm) | Filter material | Tank pressure (bar) | Valve power | Capacity (lt) | Weight (kg) | Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Iperfilter DF 12 | 12000 | 240 | 12 | 1200 | 325 | Polyester | 4-6 | 24 VAC | 65 | 750 | 3100 |
| Iperfilter DF 9 | 9500 | 180 | 9 | 1200 | 325 | Polyester | 4-6 | 24 VAC | 65 | 640 | 2690 |
