Cartridge Filters

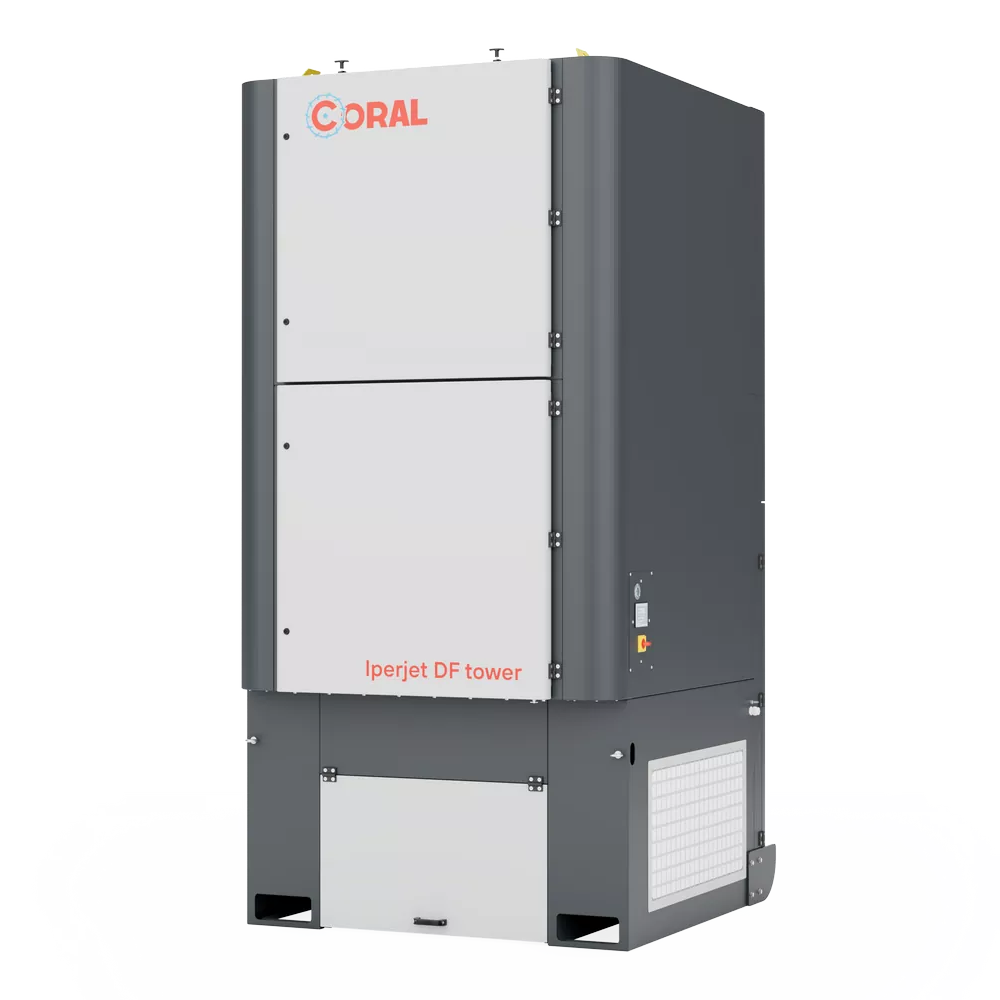

Iperjet Tower

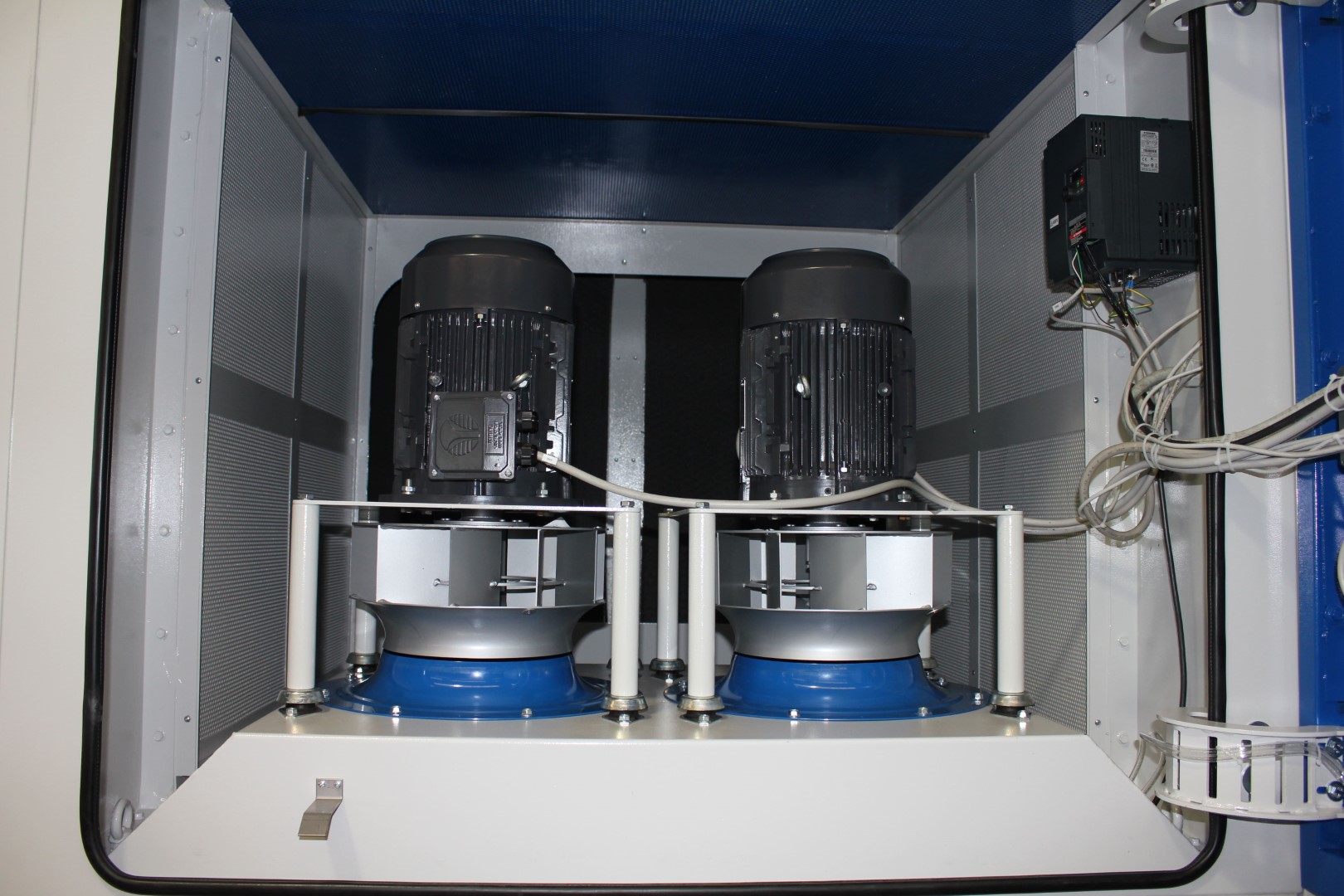

Horizontal cartridge filter unit for suction and filtration of welding fumes, coarse and fine dusts, dusts and fumes from thermal cutting, with integrated high-efficiency, low-noise fan.

Enquire

Cartridge Filters

The Iperjet Tower range

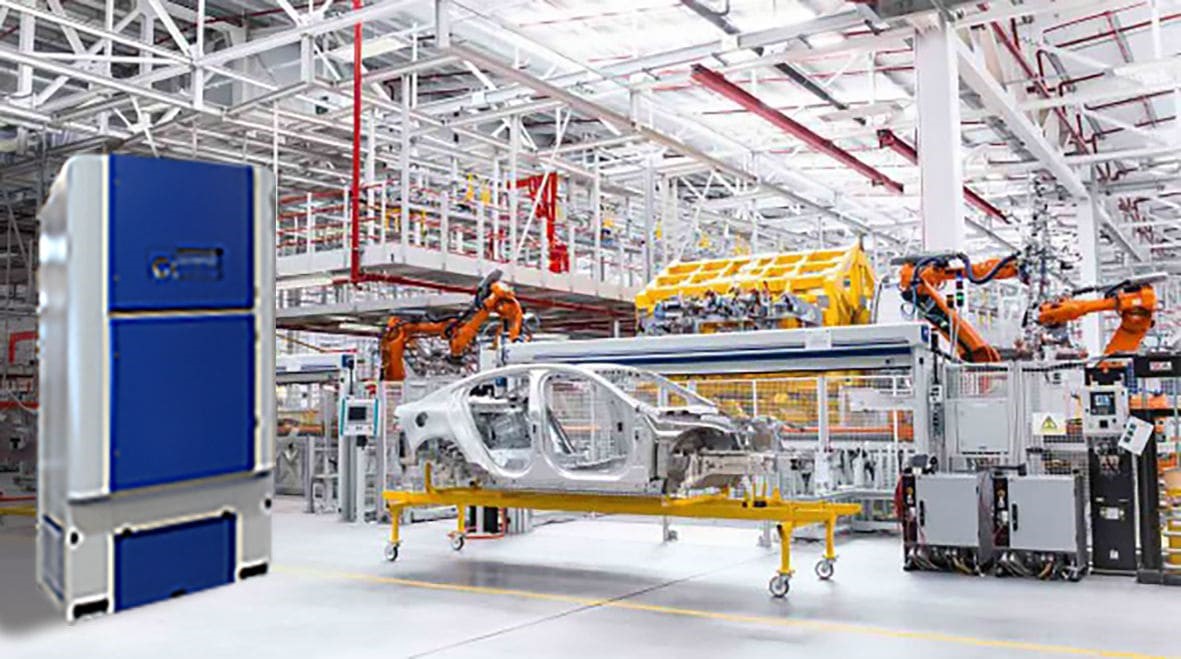

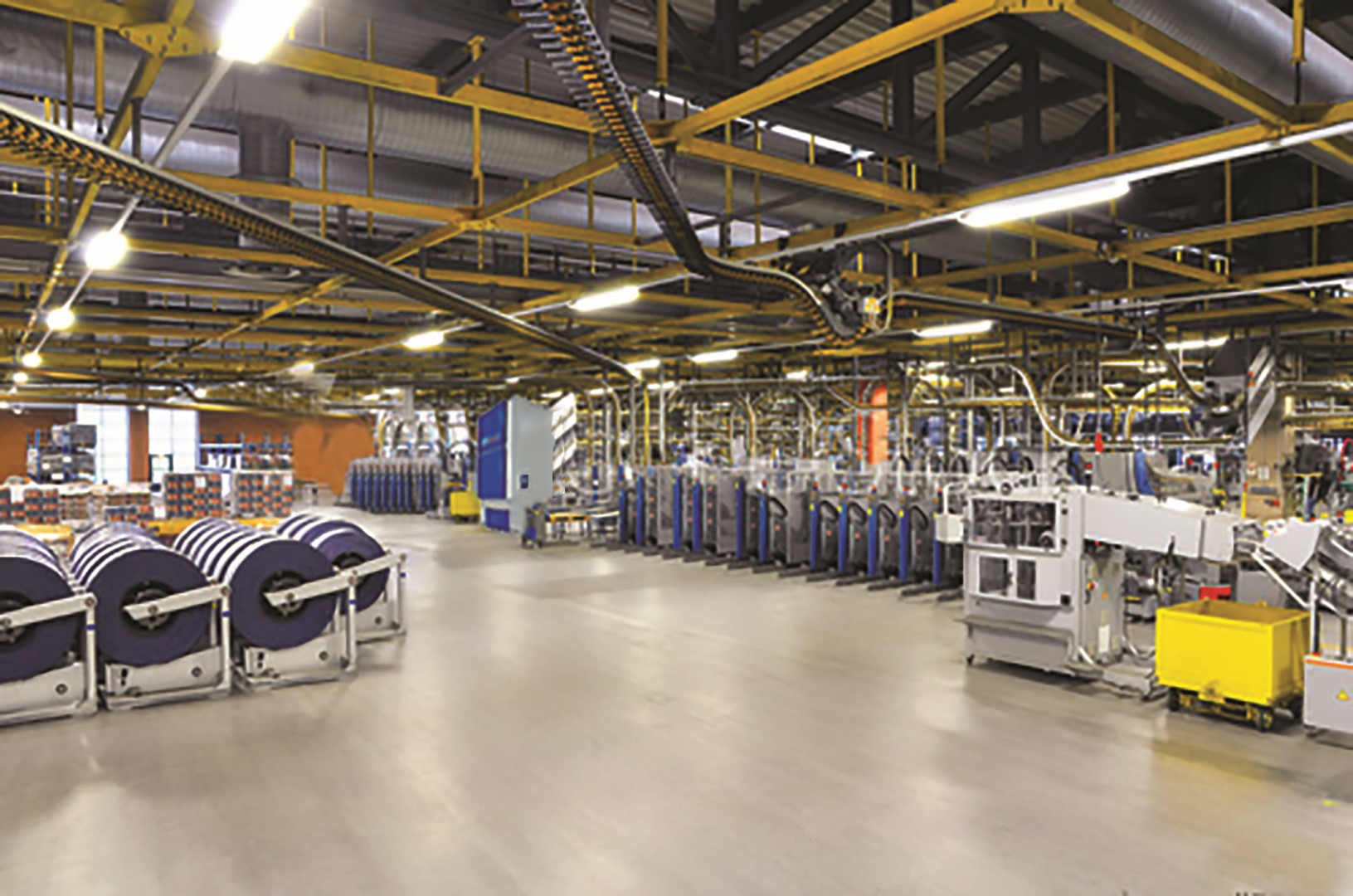

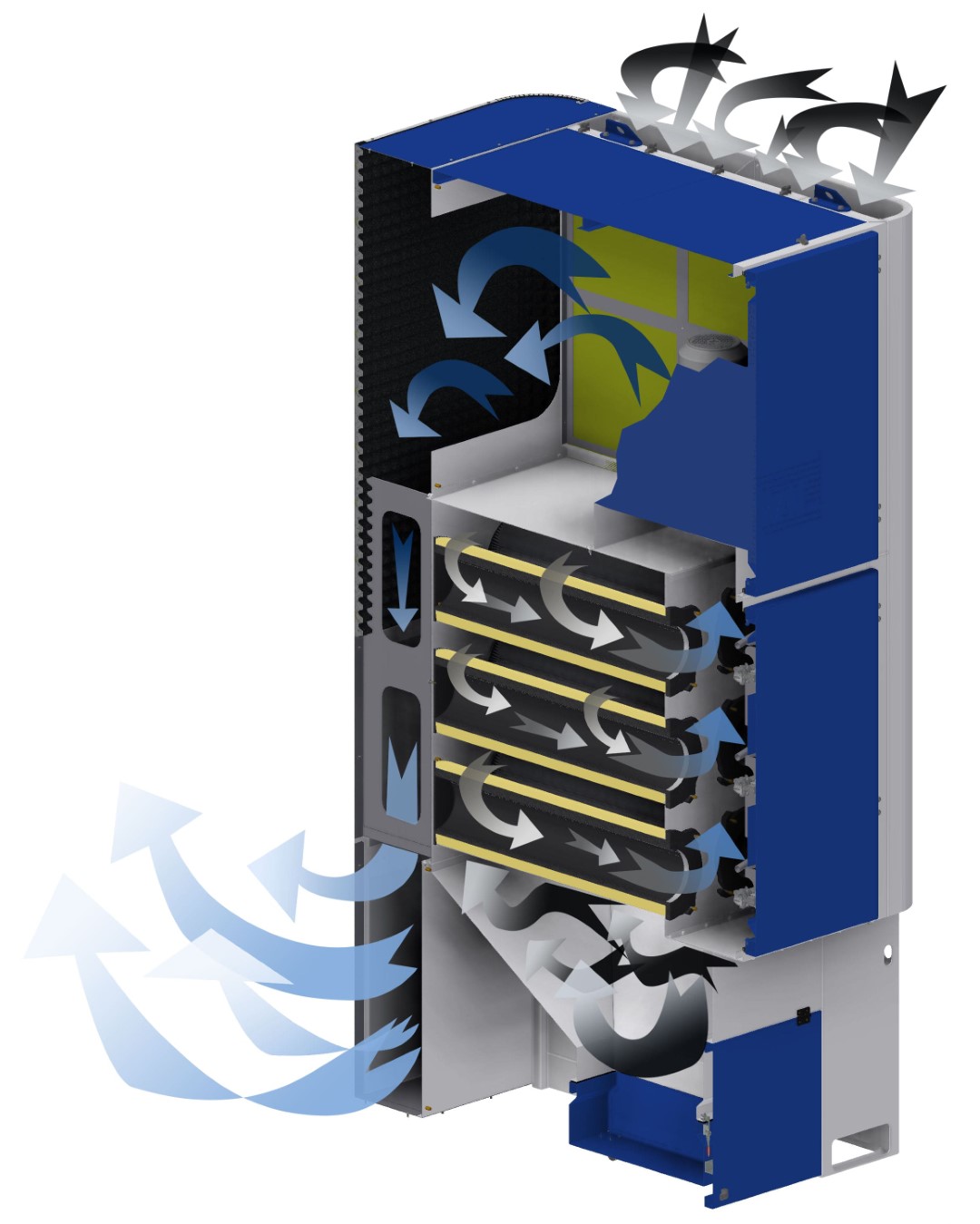

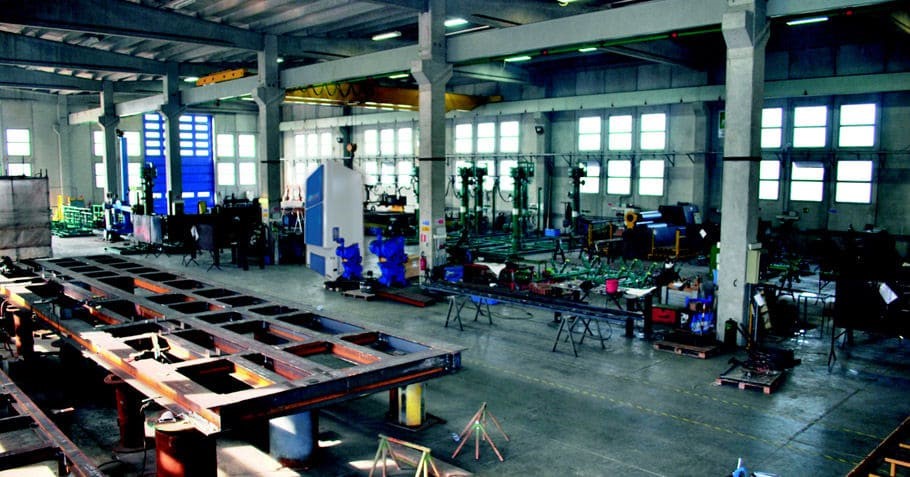

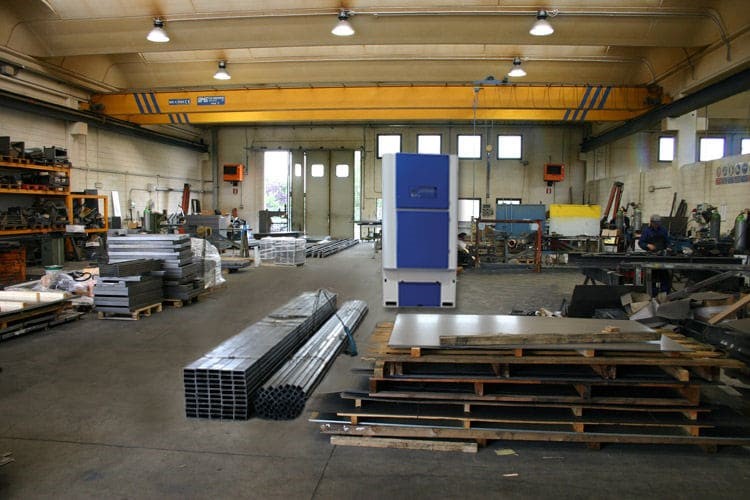

The Iperjet DF Tower operates effectively in large spaces without requiring piping installation, so filtered air returns to the work environment when permitted, delivering significant energy savings. It works on a Down Flow Concept: warm, polluted air is drawn upward through roof-mounted filter inlets; high-efficiency Class M cartridges (99.9% effective) process the air, which then returns through bottom outlets, creating a beneficial upward airflow for operators. The unit is simple to transport and position, offers horizontal cartridge maintenance access and a wheel-mounted dust collection container, and is fully automatic with monitoring via a touchscreen control panel and Plug & Play electrical/compressed-air connection.

Iperjet DF Tower 1000010,000 m³/h; 121 m² filter surface; 6 cartridges; 6 kW; 66 dB(A); 1200 kg.Iperjet DF Tower 1500015,000 m³/h; 181 m² filter surface; 9 cartridges; 8 kW; 68 dB(A); 1400 kg.Iperjet DF Tower 2000020,000 m³/h; 181 m² filter surface; 9 cartridges; 11 kW; 72 dB(A); 1500 kg.

Energy savings and reduced heating/cooling costs
No pipeline installation required
Simple transport and positioning

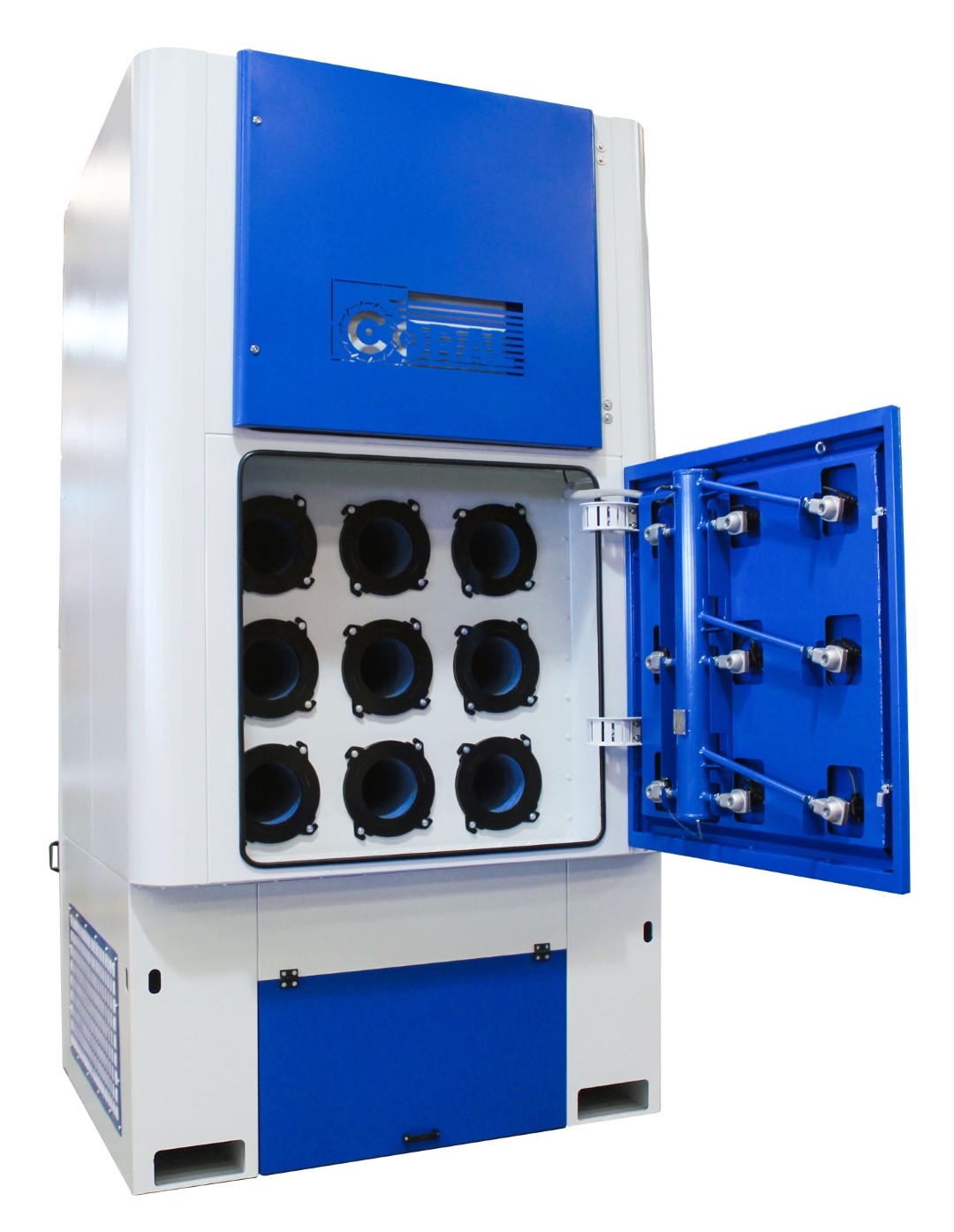

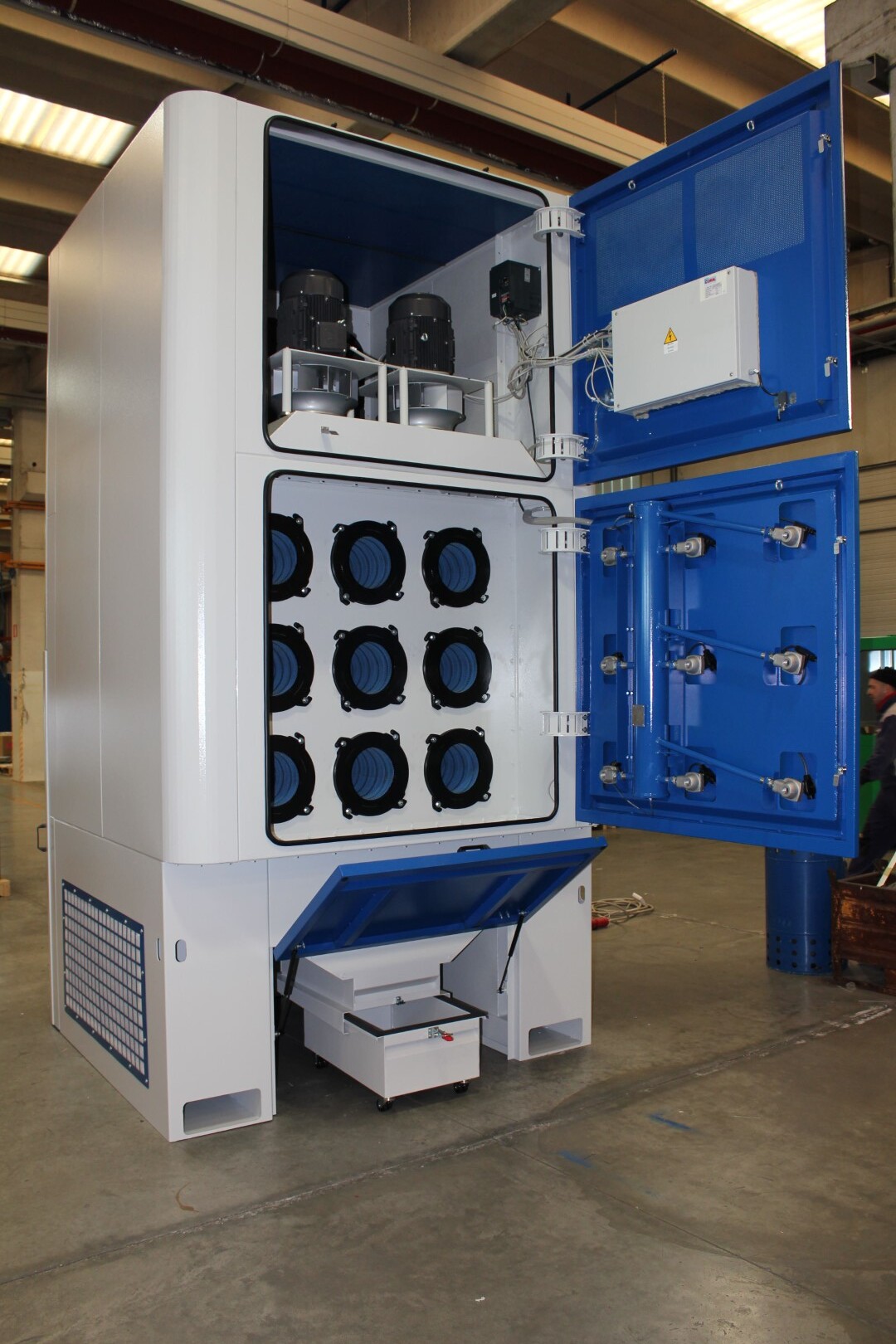

Horizontal cartridge maintenance access
Wheel-mounted dust collection container
Touchscreen control panel
Fully automatic operation with monitoring
Plug & Play electrical / compressed-air connection
Low noise operation
Optional HEPA H13 filter (99.95% effective)

Enquire about this product

Specifications

At a glance

10,000-20,000 m³/hMax air flow

121-181 m²Filter surface

6 / 9Cartridges

6-11 kWFan power

66-72 dB(A)Noise level

99.9%Class M cartridge efficiency

Iperjet Tower specifications

Model	Max flow (m³/h)	Filter surface (m²)	Cartridges	Power (kW)	Voltage (V)	Frequency (Hz)	Tank volume (lt)	Noise dB(A)	Weight (kg)	Dimensions L×H×W (mm)
Iperjet DF Tower 10000	10000	121	6	6	400	50	60	66	1200	1420×3360×1980
Iperjet DF Tower 15000	15000	181	9	8	400	50	60	68	1400	1420×3360×1980
Iperjet DF Tower 20000	20000	181	9	11	400	50	60	72	1500	1420×3680×2080

Handles

Pollutants captured

Welding fumesCoarse and fine dustsDusts and fumes from thermal cutting

Talk to our engineers

Tell us about your process and we will specify the right Iperjet Tower unit for your facility.
