Wheeled / Mobile Filters

Jetclean DF

Wheeled filter with automatic compressed-air cleaning.

Jetclean DF filter units
Wheeled / Mobile Filters

The Jetclean DF range

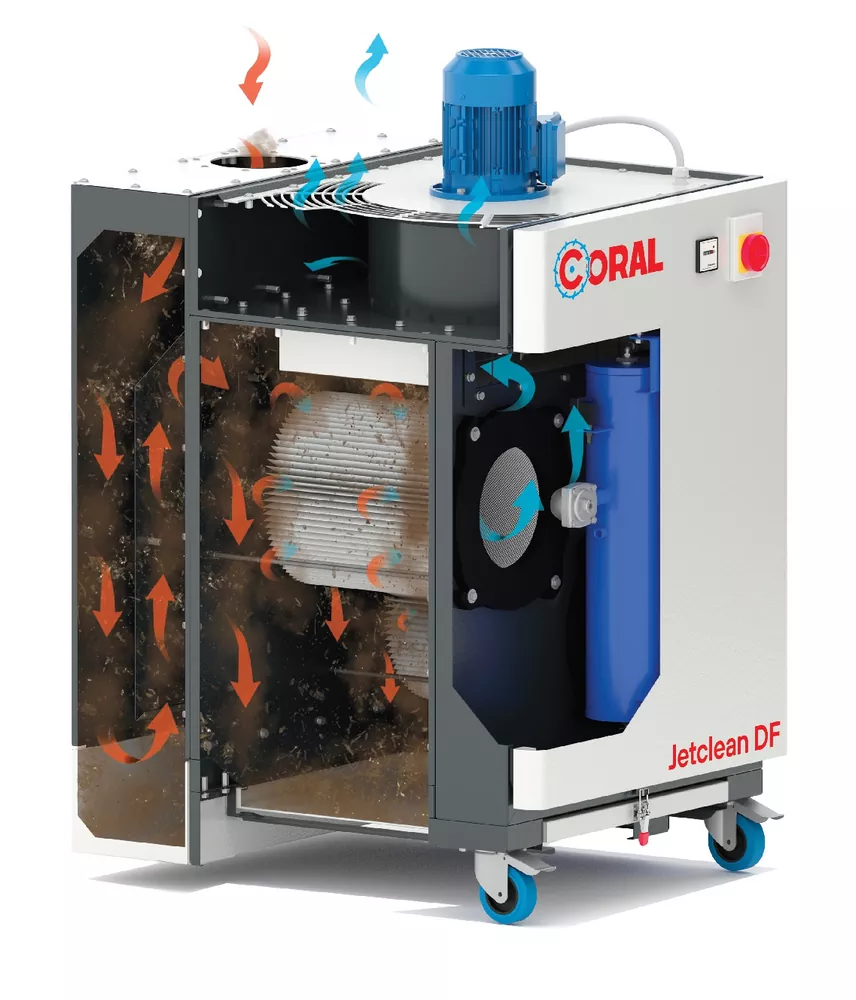

The Jetclean DF is the top-of-the-range wheeled filter unit designed for those who need constant performance without interruption. With an integrated centrifugal fan, it handles a wide variety of pollutants — gases, vapours, aerosols, fine and heavy dust, and even shavings in closed environments. Its defining feature is an automatic pneumatic cleaning system that guarantees maximum filter efficiency at all times while minimising human intervention. It uses Down Flow technology with horizontally arranged cartridges for easy maintenance, is supplied with professional Dynaflex or Evolution No Smoke arms, and offers an optional soundproof plenum and activated-carbon odour filtration. A W3-certified version is available for welding alloy (stainless) steels.

  • Automatic pneumatic cartridge cleaning maintaining constant suction
  • W3-certified version available for welding alloy (stainless) steels
  • Multi-material versatility: fumes, heavy dust, mechanical-processing residues
  • Plug & Play mobile, compact industrial solution
  • Down Flow technology for optimised airflow
  • Horizontal cartridge arrangement for easy maintenance
  • Professional Dynaflex or Evolution No Smoke arms as standard
  • Optional soundproof plenum and activated-carbon odour filtration
Specifications

At a glance

1400–2280 m³/hMaximum flow rate
8–16 m²Filter surface area
0.55–2.2 kWPower range
5Models available
PneumaticAutomatic cleaning

Jetclean DF specifications

ModelFilter materialIFA/BGIA classCartridges (nr)Cartridge height (mm)Cartridge Ø (mm)Filter surface (m²)Max flow (m³/h)Max flow (cfm)Revolutions (rpm)Power (kW)Noise dB(A)Noise + soundproof plenum dB(A)FanCleaningVoltage (V)Frequency (Hz)TanksTank volume (lt)Weight (kg)Admitted armsArm Ø (mm)
Jetclean DF1 0.55PolyesterM-PES14003258140082628450.557470PRM 220Pneumatic230/400502241151150
Jetclean DF1 0.75PolyesterM-PES14003258145085628450.757570.5PRM 220Pneumatic230/400502241201150
Jetclean DF2 1.1PolyesterM-PES2400325161880110928451.17469PRM 250Pneumatic230/400502401551150
Jetclean DF2 2.2PolyesterM-PES2400325162280134528452.274.570PRM 250Pneumatic230/400502401702150
Jetclean DF2 1.1 W3PolyesterM-PES240032512150029201.170PRM 250Pneumatic230/40050225.51851150
Handles

Pollutants captured

Welding fumesGasesVapoursAerosolsFine dustHeavy dustMechanical-processing shavingsOdours (with optional activated carbon)
