Skyhood
Laminar and modular extractor hood mounted on support legs or suspended from the ceiling.
The Skyhood range

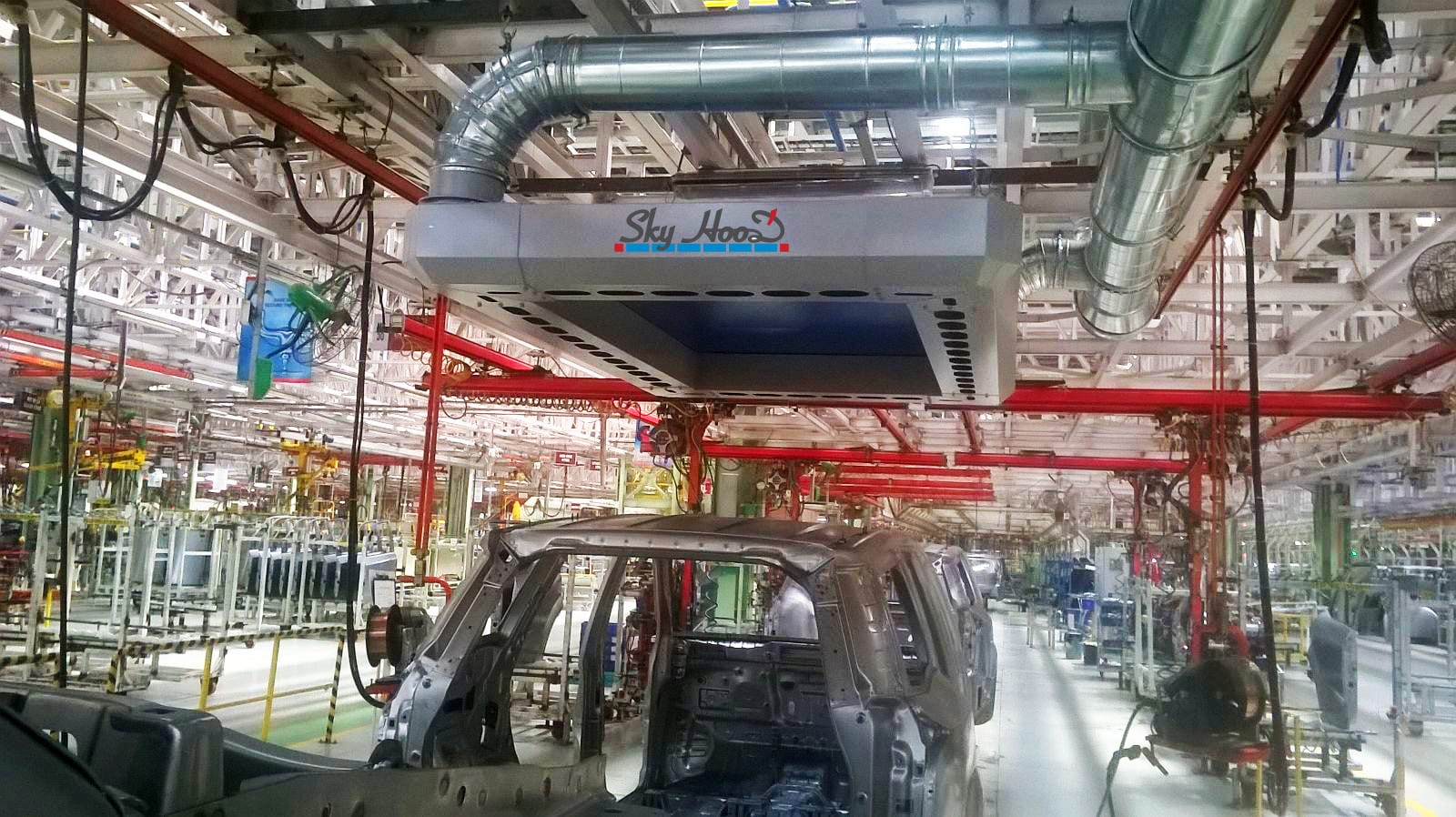

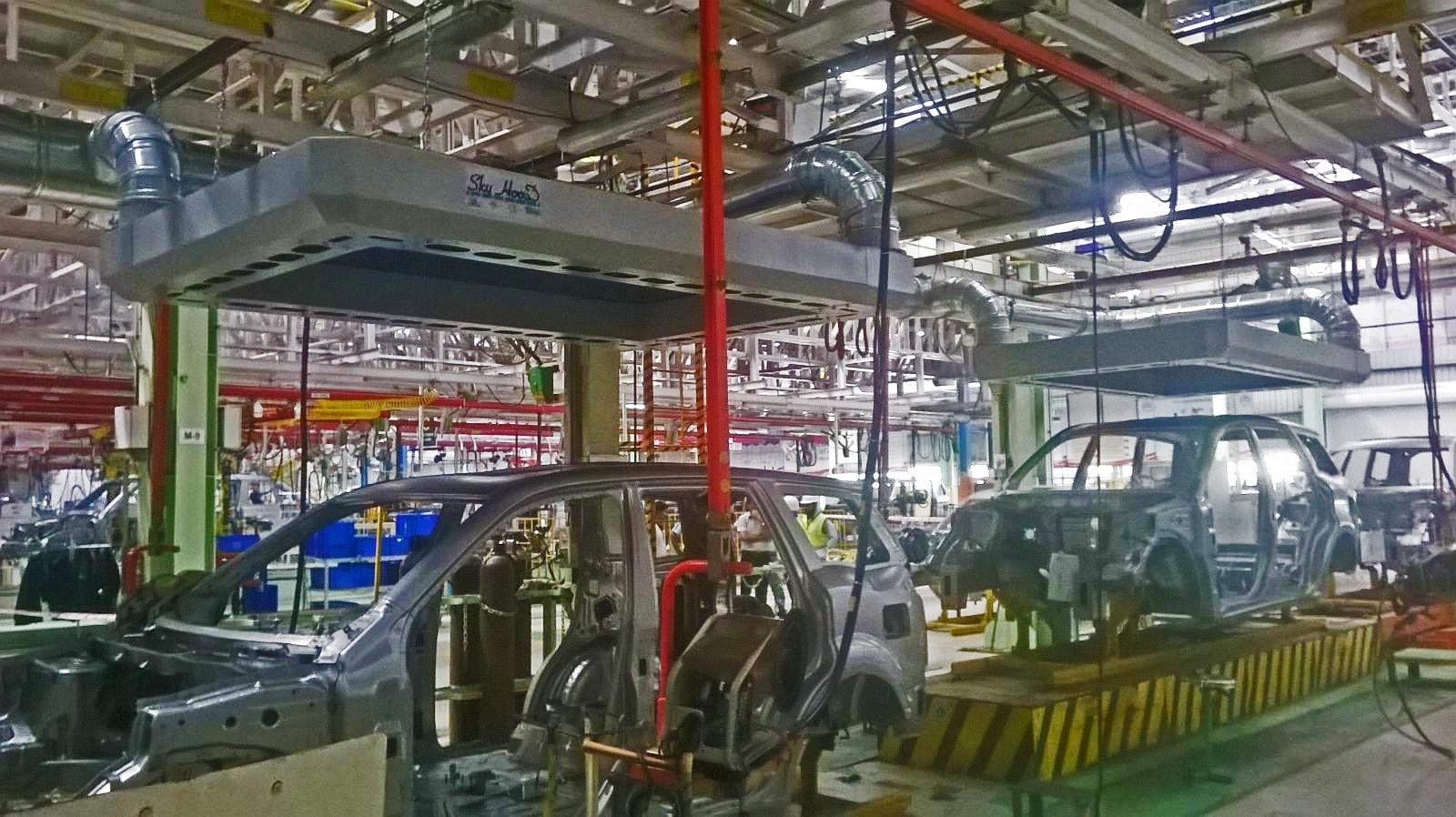

The Skyhood is a laminar, modular extractor hood that can be mounted on support legs or suspended from the ceiling, allowing installation where direct source suction is not possible. Thanks to an innovative single-flow principle, it achieves high extraction efficiency at very low air volumes and therefore lower energy consumption, with dust drawn through elongated openings on the inner edges. Assembly is very simple, consisting mainly of bolted parts connected with corner connectors. It is available in several sizes, with optional protective curtains for welding operations.
- Single-flow principle for high extraction efficiency at very low air volumes
- Low energy consumption

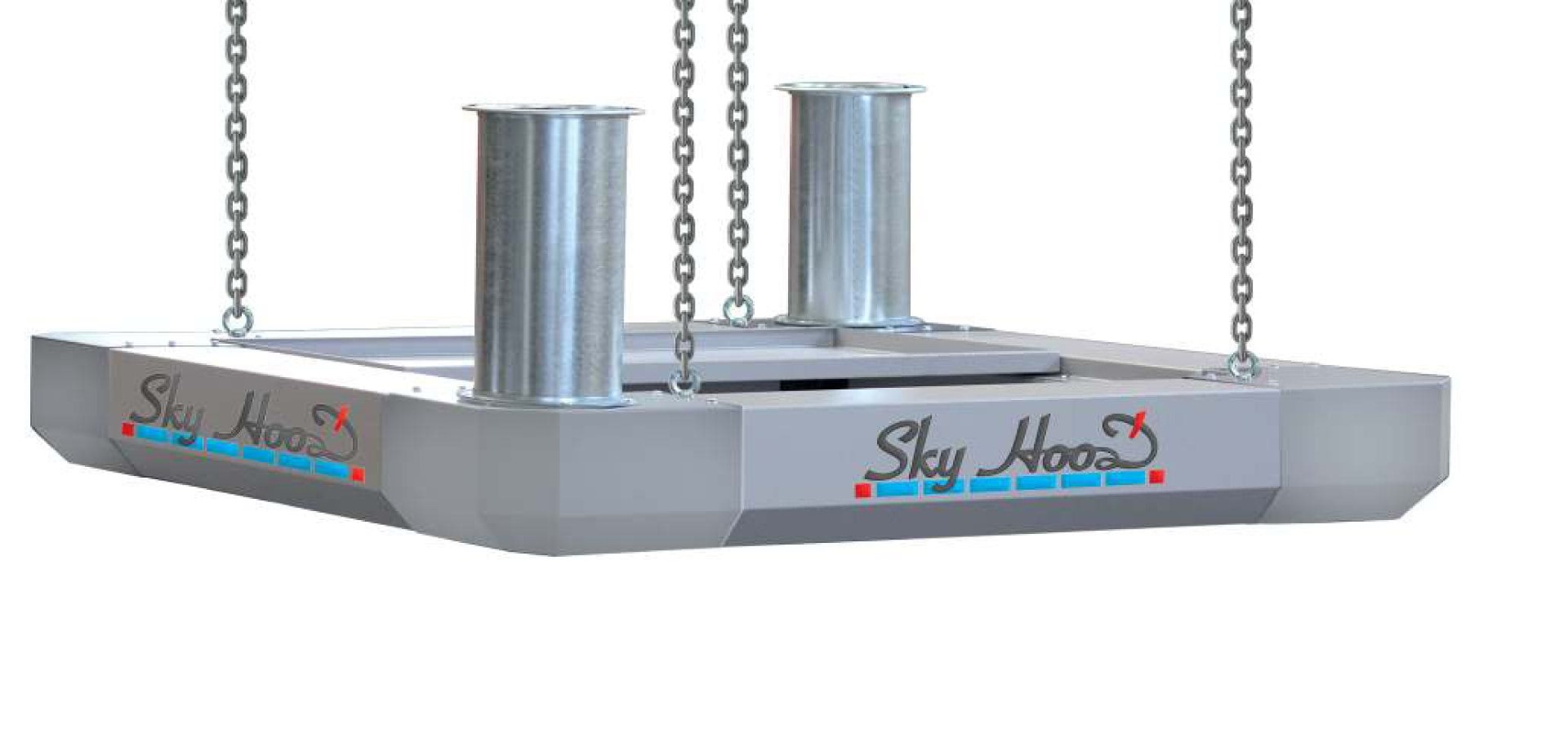

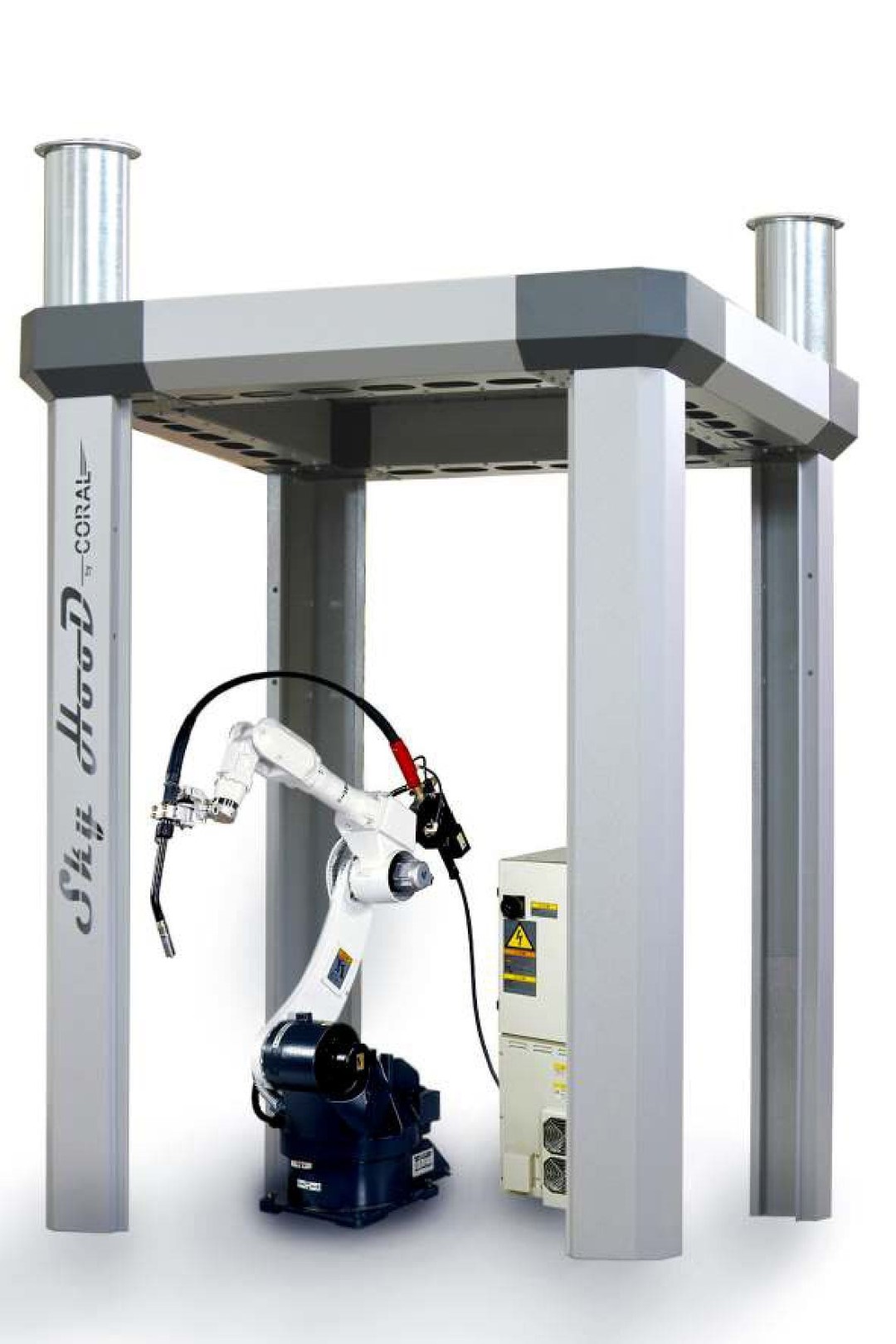

- Modular installation - on support legs or suspended from the ceiling

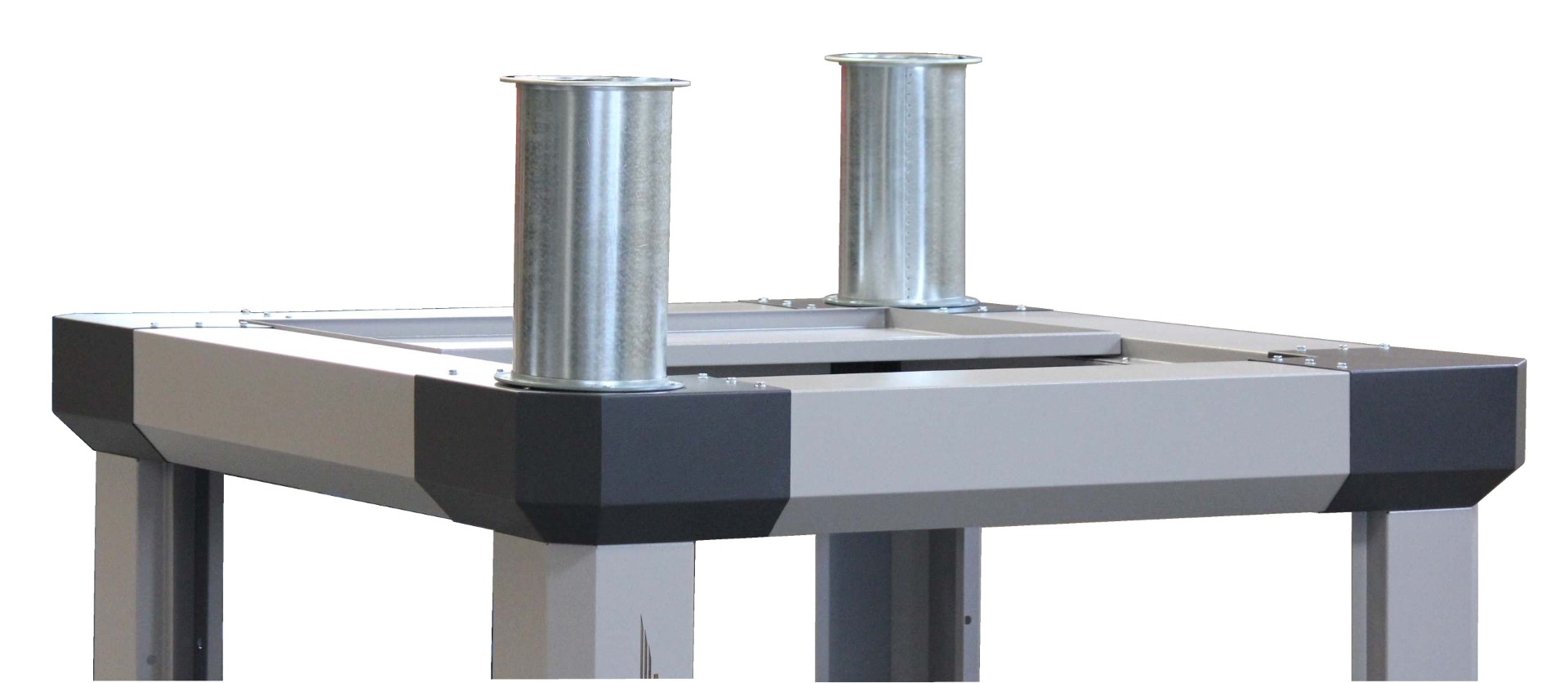

- Very simple assembly using bolted parts and corner connectors

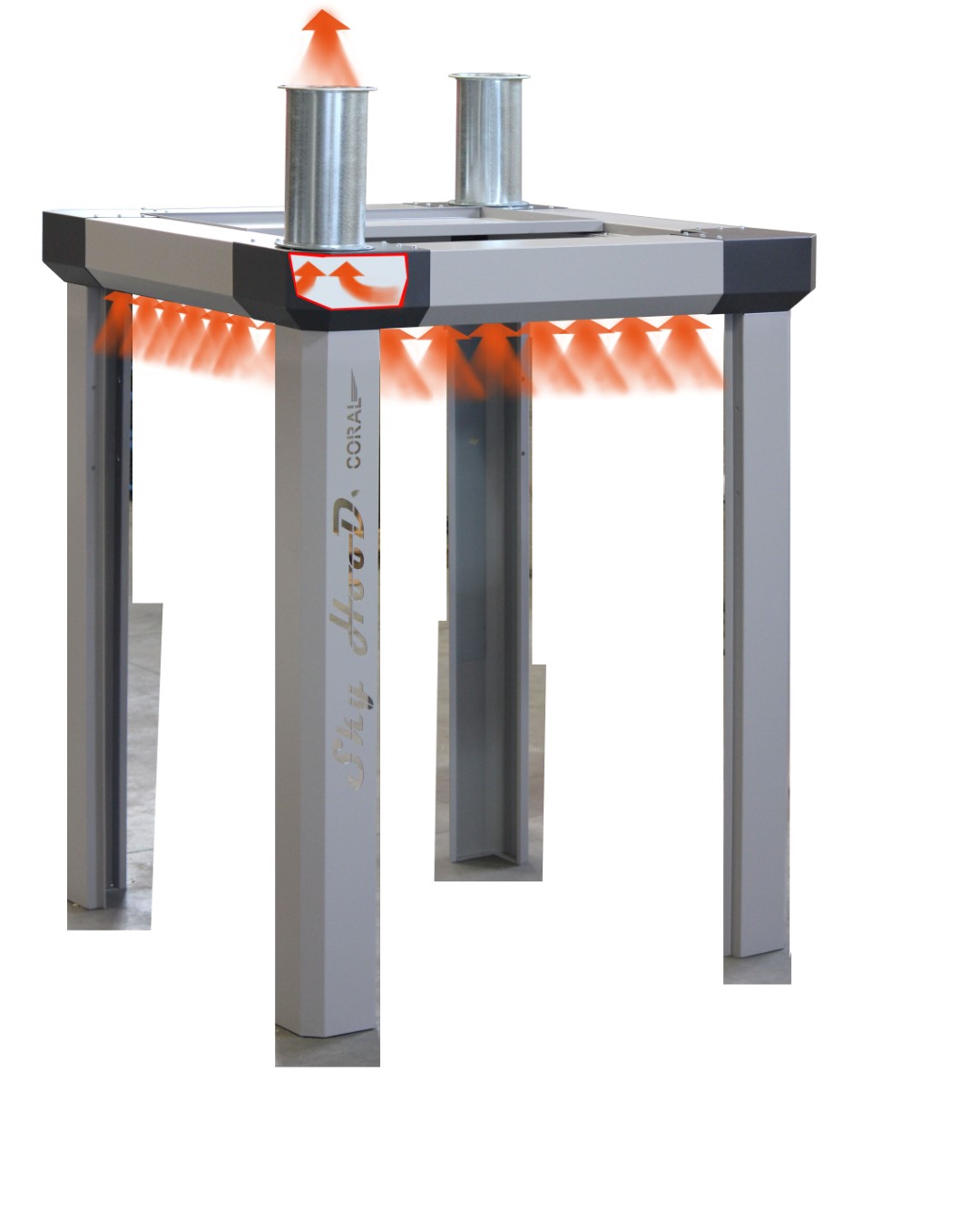

- Dust drawn through elongated openings on the inner edges

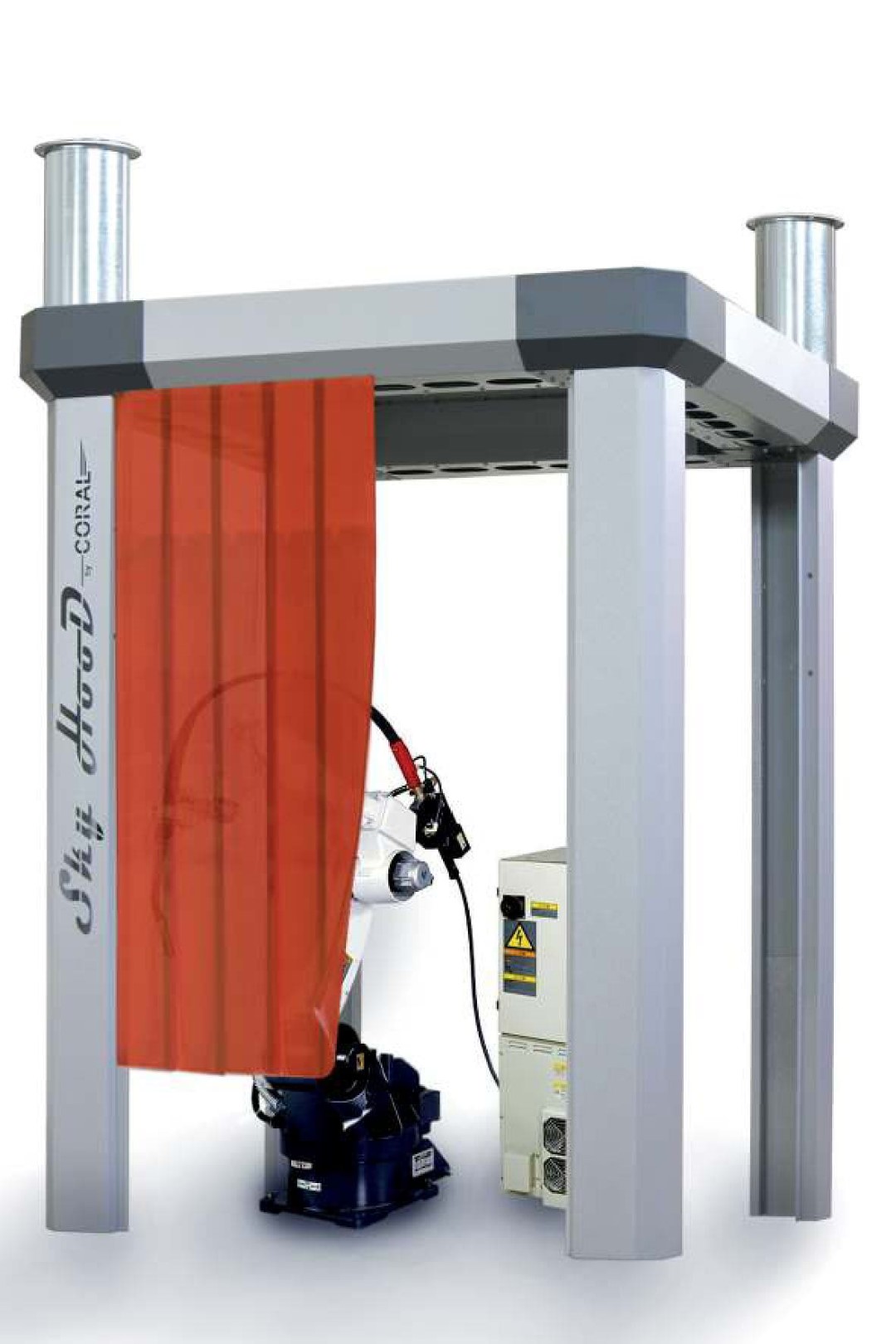

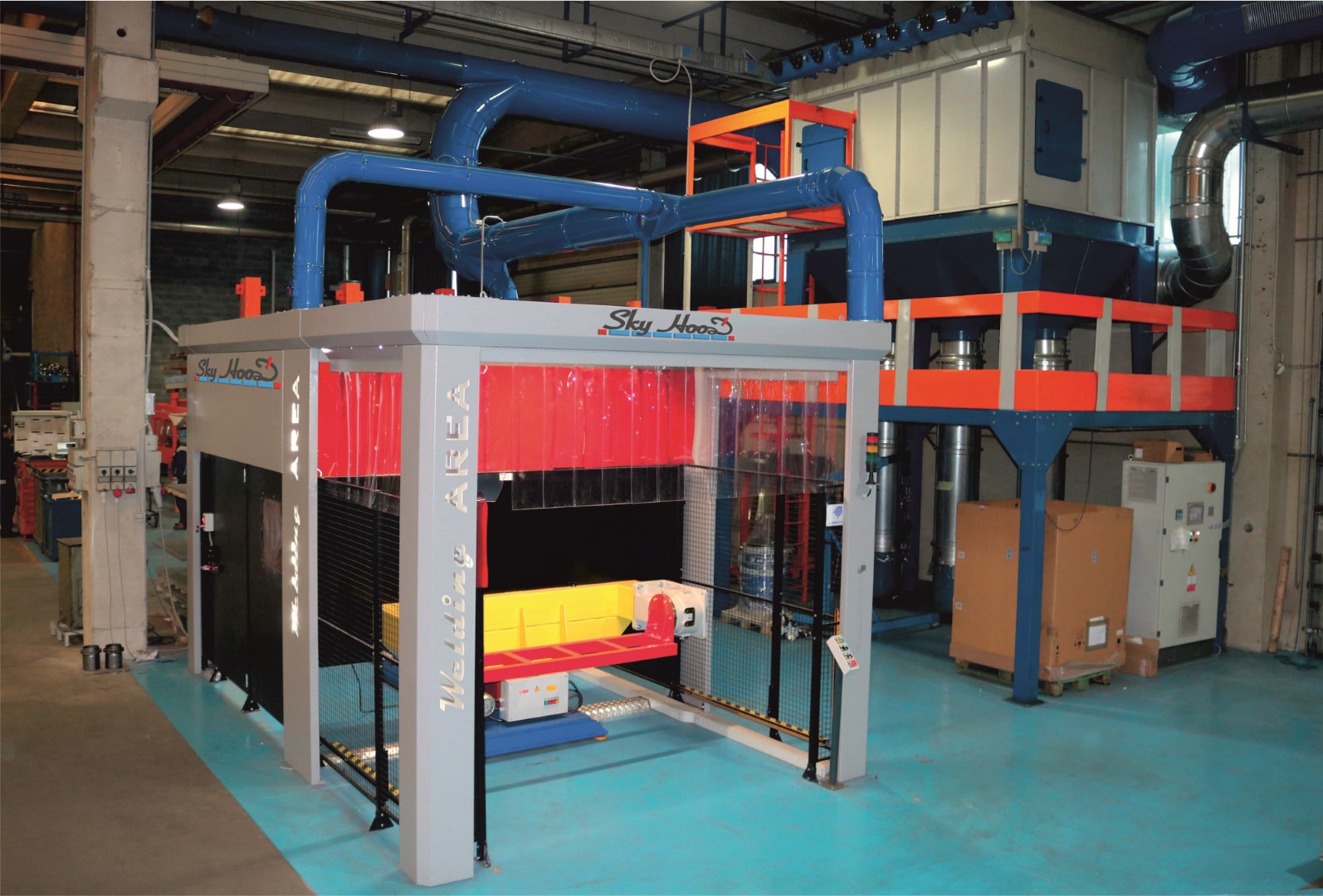

- Optional protective curtains for welding operations
At a glance
Skyhood specifications
| Model | Max flow (m3/h) | Max flow (cfm) | Inlets | Inlet (mm) | A (mm) | B (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| Skyhood 2x2 | 4320 | 2542 | 2 | 250 | 2000 | 2000 | 180 |
| Skyhood 3x2 | 6480 | 3813 | 2 | 250 | 3000 | 2000 | 220 |
| Skyhood 3x3 | 9720 | 5720 | 2 | 250 | 3000 | 3000 | 264 |
Pollutants captured
Talk to our engineers
Tell us about your process and we will specify the right Skyhood unit for your facility.
