Wheeled / Mobile Filters

Smokart

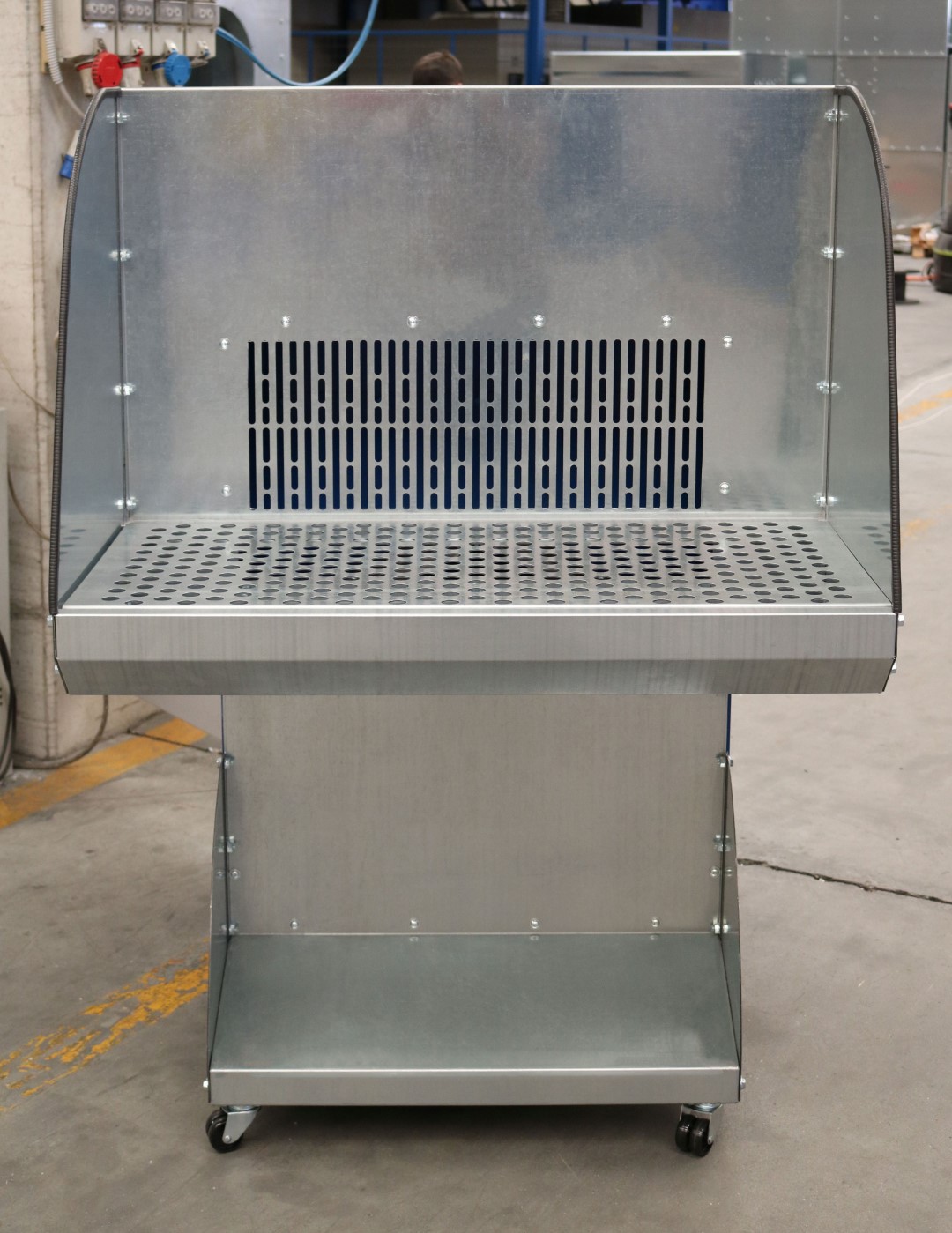

Wheeled unit with a small suction work surface, ideal for air filtration in welding operations (DF/W) and occasional light grinding (DF/G) of small parts.

Enquire

Wheeled / Mobile Filters

The Smokart range

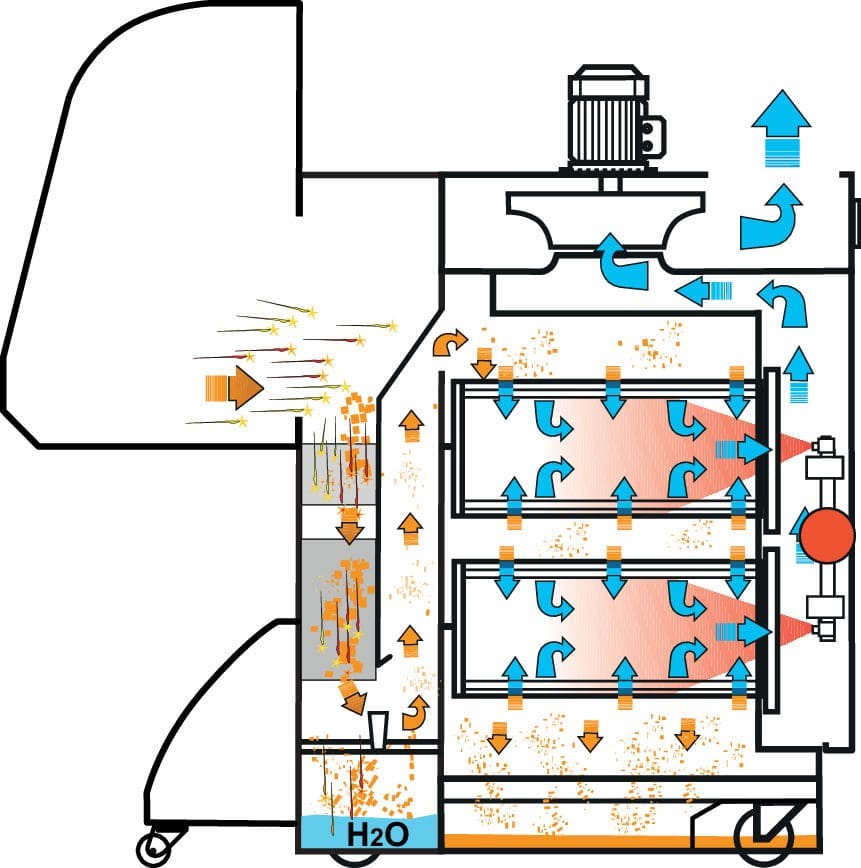

The Smokart is a Plug & Play wheeled filter requiring no installation. It has an extraordinarily compact design that still delivers air flow rates up to 2,280 m³/h, with very easy maintenance and comfortable, lightweight handling. It employs a Down Flow Concept design and is available in a welding version (DF/W) and a grinding version (DF/G).

Smokart DF/WWelding version (DF/W 1.1 and DF/W 2.2), 40 lt tank.Smokart DF/GGrinding version (DF/G 1.1 and DF/G 2.2), 48 lt tank.

Comfortable, lightweight and easy to handle
Air flow rate up to 2,280 m³/h in a compact size
Very easy maintenance
Plug & Play solution, no installation required
Down Flow Concept design

Enquire about this product

Specifications

At a glance

up to 2280 m³/hMaximum flow rate

16 m²Filter surface area

1.1–2.2 kWPower range

4Models available

Smokart specifications

Model	Version	Filter material	IFA/BGIA class	Cartridges (nr)	Cartridge height (mm)	Cartridge Ø (mm)	Filter surface (m²)	Max flow (m³/h)	Max flow (cfm)	Revolutions (rpm)	Power (kW)	Fan	Voltage (V)	Frequency (Hz)	Tanks	Tank volume (lt)	Length (mm)	Height (mm)	Width (mm)
Smokart DF/W 1.1	For welding	Polyester	M-PES	2	400	325	16	1880	1109	2845	1.1	PRM 250	400	50	2	40	1490	1467	1005
Smokart DF/W 2.2	For welding	Polyester	M-PES	2	400	325	16	2280	1345	2845	2.2	PRM 250	400	50	2	40	1490	1467	1005
Smokart DF/G 1.1	For grinding	Polyester	M-PES	2	400	325	16	1880	1109	2845	1.1	PRM 250	400	50	2	48	1490	1467	1005
Smokart DF/G 2.2	For grinding	Polyester	M-PES	2	400	325	16	2280	1345	2845	2.2	PRM 250	400	50	2	48	1490	1467	1005

Handles

Pollutants captured

Welding fumes (DF/W)Grinding dust (DF/G)
