Sneb
Circular cyclonic fume and oil-mist filter for centralized systems in high-concentration environments.
Specialized Filters
The Sneb range

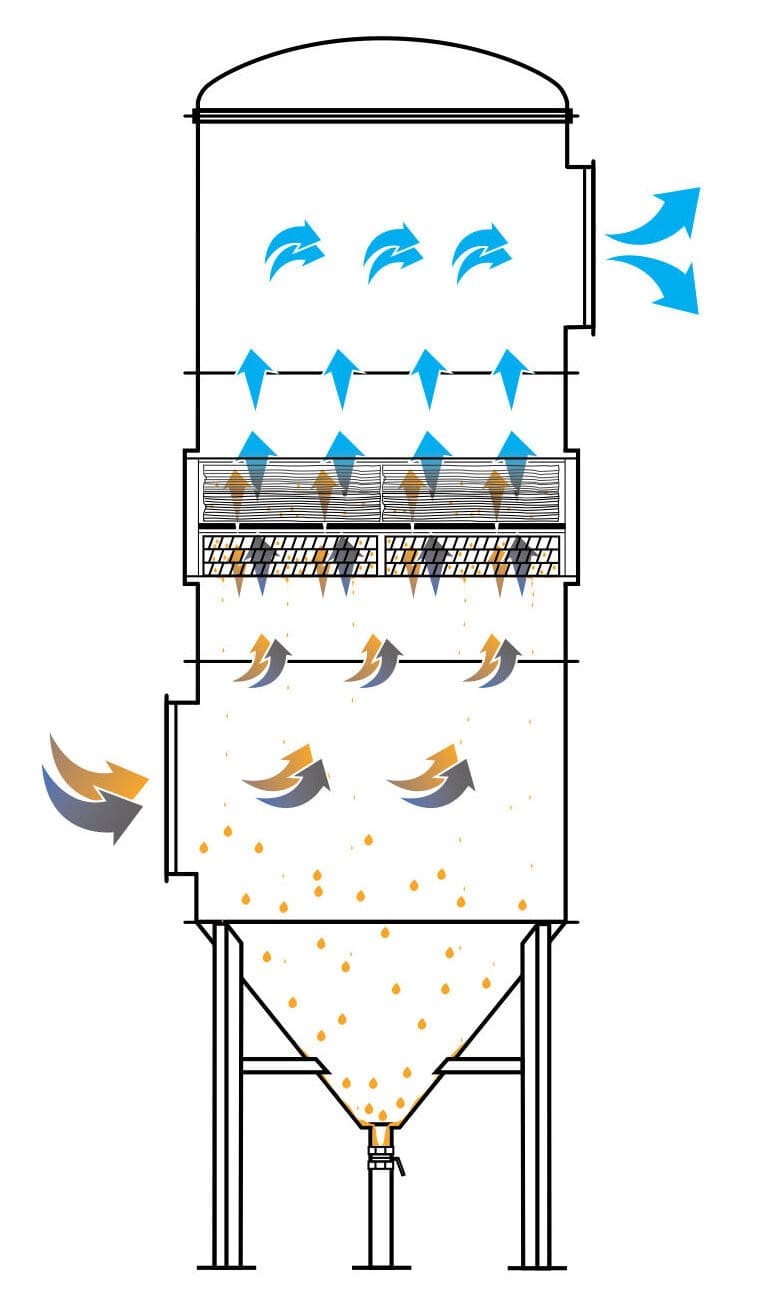

Sneb is a circular cyclonic fume and oil-mist filter for centralized systems in environments where high concentrations of oil and its emulsions, hydrocarbons, glycol solutions and ammonia are detected. It employs the aggregation principle of coalescence to aggregate and separate oil mist and fumes from air streams, delivering high separation efficiency. Collected oil droplets can be reused in production processes, and the unit maintains high efficiency for a long time with reduced maintenance; an optional timed automatic cleaning system is available.
- High separation efficiency thanks to the coalescence aggregation principle
- Oil-droplet recovery for reuse in production processes
- Reduced maintenance requirements — maintains high efficiency for a long time
- Optional timed automatic cleaning system
Specifications
At a glance
6000–30000 m³/hMax flow rate
9Models
CoalescenceSeparation principle
Sneb specifications
| Model | Max flow (m³/h) | Inputs | Input (mm) | Outputs | Output (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| Sneb 60 | 6000 | 1 | 480 | 1 | 420 | 490 |
| Sneb 80 | 8000 | 1 | 550 | 1 | 480 | 560 |
| Sneb 100 | 10000 | 1 | 600 | 1 | 550 | 630 |
| Sneb 120 | 12000 | 1 | 680 | 1 | 600 | 840 |
| Sneb 140 | 14000 | 1 | 750 | 1 | 630 | 950 |
| Sneb 160 | 16000 | 1 | 800 | 1 | 680 | 1100 |
| Sneb 180 | 18000 | 1 | 850 | 1 | 750 | — |
| Sneb 200 | 20000 | 1 | 900 | 1 | 750 | 1390 |
| Sneb 300 | 30000 | 1 | 1000 | 1 | 850 | 2120 |
