Zincowall
Suction wall for frontal suction of dry smoke and dust. Wall connectable to a centralized suction and filtration system with sized piping.
Suction Benches
The Zincowall range

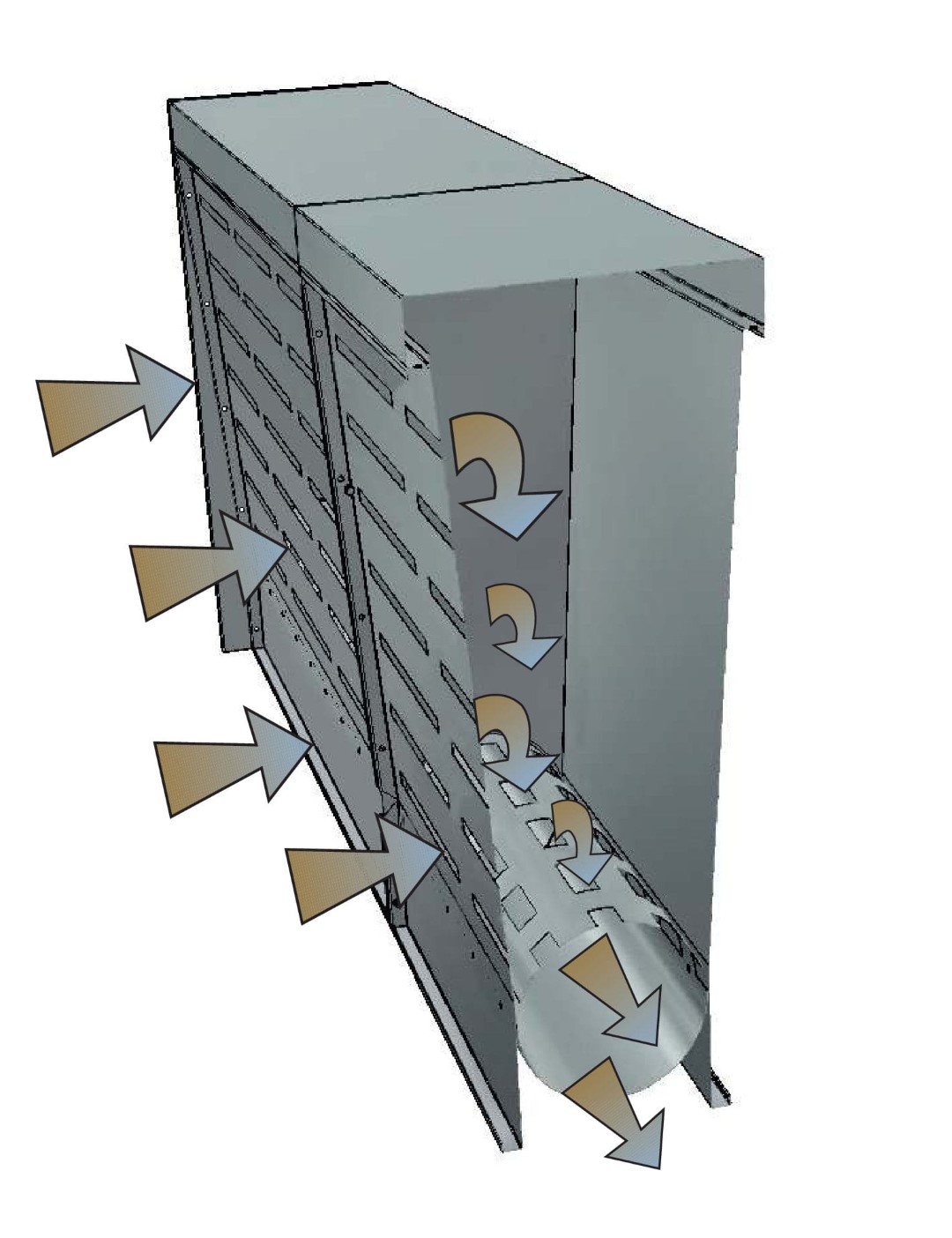

Zincowall is a wall-mounted suction solution designed for frontal extraction of dry smoke and dust. The wall connects to a centralized suction and filtration system via suitably sized piping. It is suited to large flow rates of polluted air and is modular, adapting to any type of centralized system; a version for higher air flow rates can be designed and manufactured on request.
Zincowall 1500×1300Maximum flow rate 3,500 m³/h; height 1,300 mm, width 1,500 mm.Zincowall 2000×1300Maximum flow rate 4,600 m³/h; height 1,300 mm, width 2,000 mm.Zincowall 1500×2200Maximum flow rate 6,000 m³/h; height 2,200 mm, width 1,500 mm.Zincowall 2000×2200Maximum flow rate 8,000 m³/h; height 2,200 mm, width 2,000 mm.
- Solution suitable for large flow rates of polluted air
- Unlimited: a version for higher air flow rates can be designed and manufactured upon request
- Modular: adapts to any type of centralized system
Specifications
At a glance
8,000 m³/hMax flow rate
4Models available
2,200 mmMax wall height
Zincowall specifications
| Model | Maximum flow rate (m³/h) | Height (mm) | Width (mm) |
|---|---|---|---|
| Zincowall 1500×1300 | 3,500 | 1,300 | 1,500 |
| Zincowall 2000×1300 | 4,600 | 1,300 | 2,000 |
| Zincowall 1500×2200 | 6,000 | 2,200 | 1,500 |
| Zincowall 2000×2200 | 8,000 | 2,200 | 2,000 |
Handles
Pollutants captured
Talk to our engineers
Tell us about your process and we will specify the right Zincowall unit for your facility.
