Airalt M

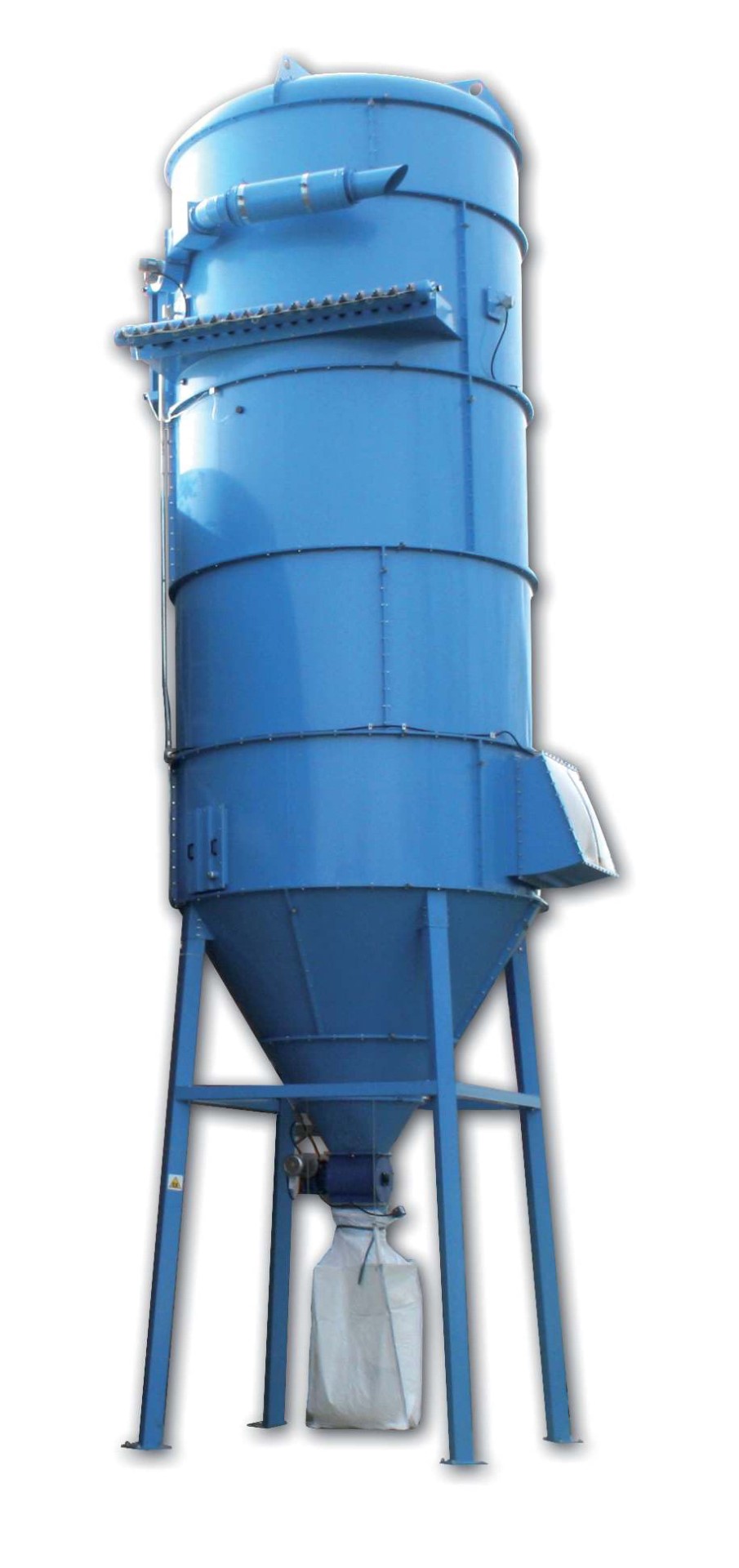

The robust and durable Airalt/M bag filter is designed for the suction and filtration of fumes and dust in high-vacuum extraction systems.

Enquire Download brochure

Bag Filters

The Airalt M range

Polluted air enters from below so the heavier particles settle into the collection bin while lighter particles rise through the vertically mounted filter sleeves. An automatic compressed-air cleaning system keeps the filter media working efficiently.

Airalt/M 11/1.511 m² filter surface · maximum flow rate 1,500 m³/h · 7 bar working pressure Airalt/M 14/2.014 m² filter surface · maximum flow rate 1,800 m³/h · 7 bar working pressure Airalt/M 18/2.518 m² filter surface · maximum flow rate 2,500 m³/h · 7 bar working pressure Airalt/M 26/2.026 m² filter surface · maximum flow rate 3,400 m³/h · 7 bar working pressure Airalt/M 32/2.032 m² filter surface · maximum flow rate 4,300 m³/h · 7 bar working pressure Airalt/M 33/2.533 m² filter surface · maximum flow rate 4,400 m³/h · 7 bar working pressure Airalt/M 40/2.540 m² filter surface · maximum flow rate 5,400 m³/h · 7 bar working pressure Airalt/M 41/2.041 m² filter surface · maximum flow rate 5,400 m³/h · 7 bar working pressure Airalt/M 51/2.551 m² filter surface · maximum flow rate 6,600 m³/h · 7 bar working pressure Airalt/M 61/3.061 m² filter surface · maximum flow rate 8,000 m³/h · 7 bar working pressure Airalt/M 69/2.069 m² filter surface · maximum flow rate 9,000 m³/h · 7 bar working pressure Airalt/M 87/2.587 m² filter surface · maximum flow rate 11,300 m³/h · 7 bar working pressure Airalt/M 104/3.0104 m² filter surface · maximum flow rate 13,500 m³/h · 7 bar working pressure Airalt/M 121/2.0121 m² filter surface · maximum flow rate 15,700 m³/h · 7 bar working pressure Airalt/M 151/2.5151 m² filter surface · maximum flow rate 19,600 m³/h · 7 bar working pressure Airalt/M 181/3.0181 m² filter surface · maximum flow rate 23,500 m³/h · 7 bar working pressure Airalt/M 206/2.5206 m² filter surface · maximum flow rate 26,700 m³/h · 7 bar working pressure Airalt/M 247/3.0246 m² filter surface · maximum flow rate 32,000 m³/h · 7 bar working pressure Airalt/M 292/2.5291 m² filter surface · maximum flow rate 37,800 m³/h · 7 bar working pressure Airalt/M 350/3.0350 m² filter surface · maximum flow rate 45,500 m³/h · 7 bar working pressure

Available in ATEX versions for flammable and explosive pollutants
Automatic compressed-air filter cleaning
Cyclonic pre-separation removes larger particles before filtration

Enquire about this product Download brochure

Talk to our engineers

Tell us about your process and we will specify the right Airalt M unit for your facility.
