Bag Filters
Airalt

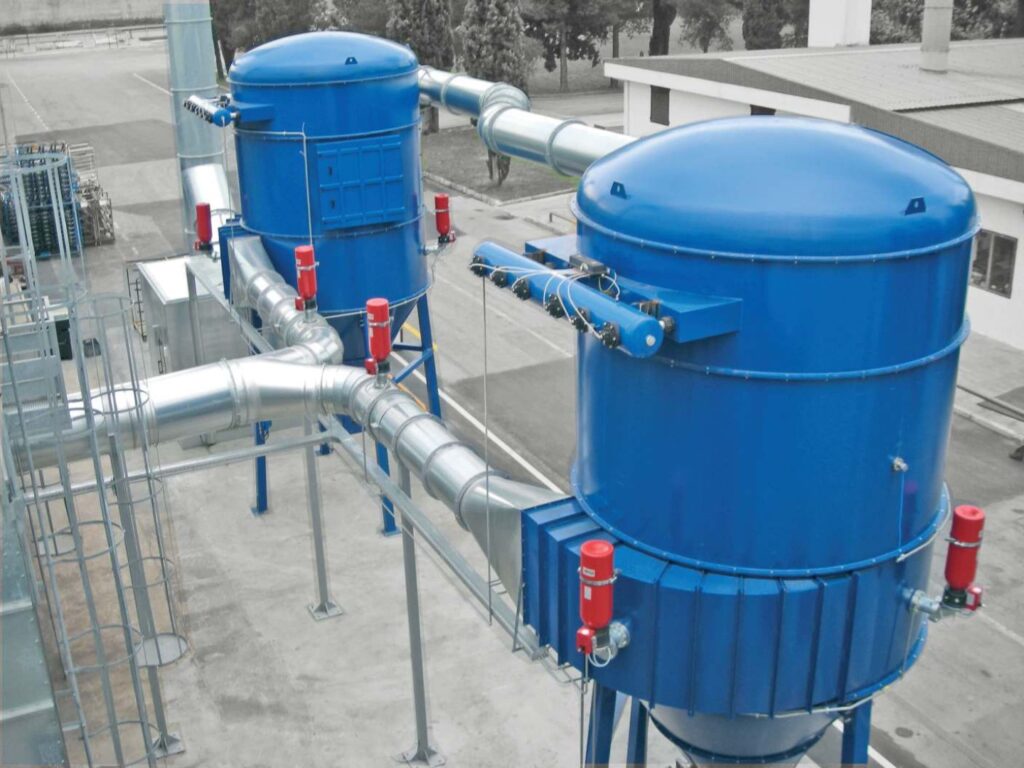

Airalt's cylindrical filter units draw fumes and polluting dust from below, allowing the finest and lightest particles to rise up to the filter media, which is equipped with an automatic cleaning system.
Bag Filters
The Airalt range
The Airalt line consists of cylindrical filter units, constructed of high-strength steel, with a tangential airflow inlet for excellent cyclonic pre-separation. Airalt filters are available as cartridge (Airalt ST) or bag filters (Airalt/M) mounted vertically. They are equipped with an automatic compressed-air cleaning system and are also available with ATEX certification.
Airalt/MBag filter - robust and durable, for the suction and filtration of fumes and dust in plants with high vacuum inside.Airalt STCartridge filter - cylindrical, sturdy design that draws polluting fumes and dust from below.
- Also available in an ATEX version for potentially explosive dust environments
- Automatic cleaning with compressed air
- Cyclonic effect separates the larger pollutant particles and filters out the finer ones
Specifications
At a glance
350 m²Max filter surface area
45,500 m³/hMax flow rate
20Models available
7 barWorking pressure

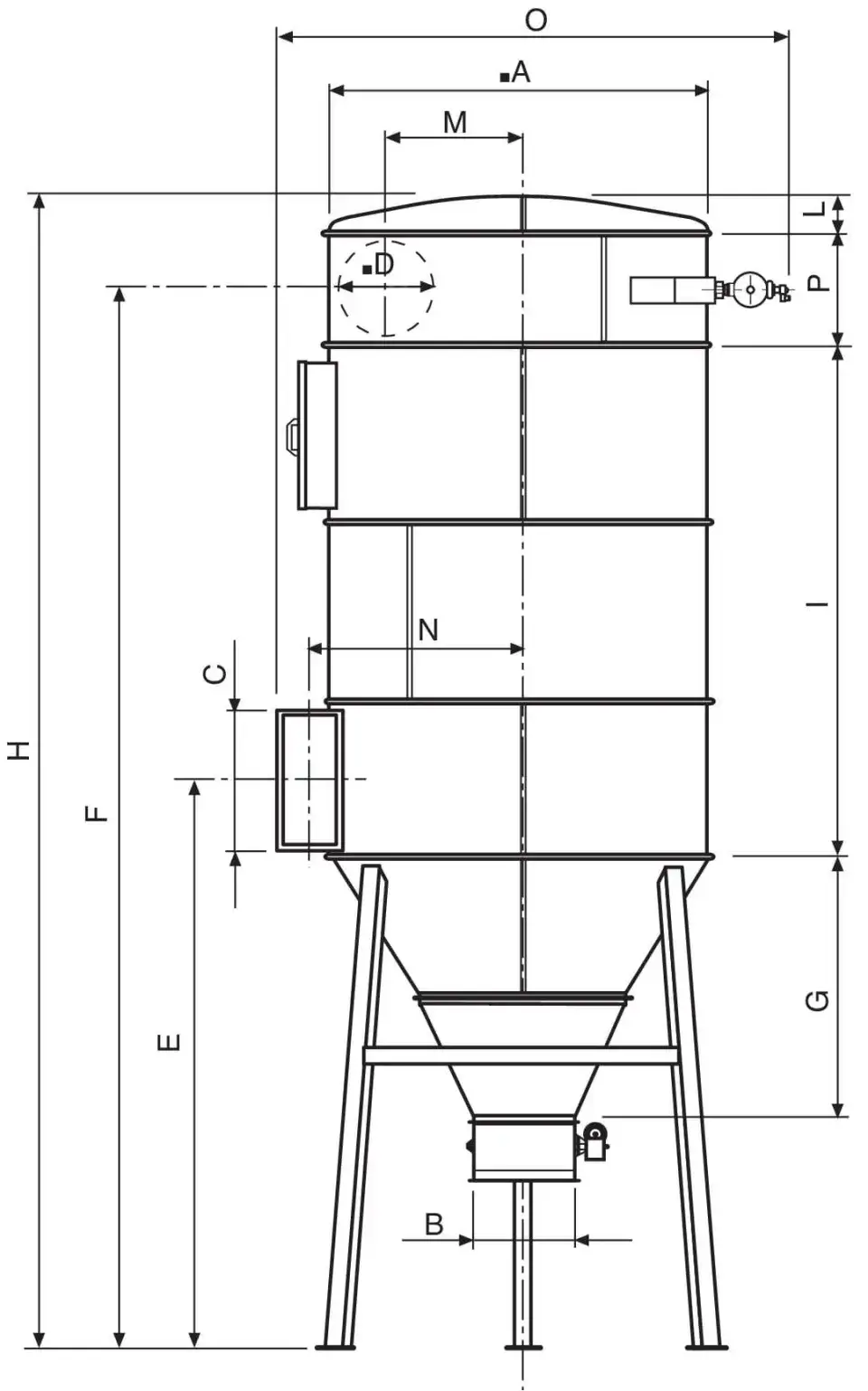

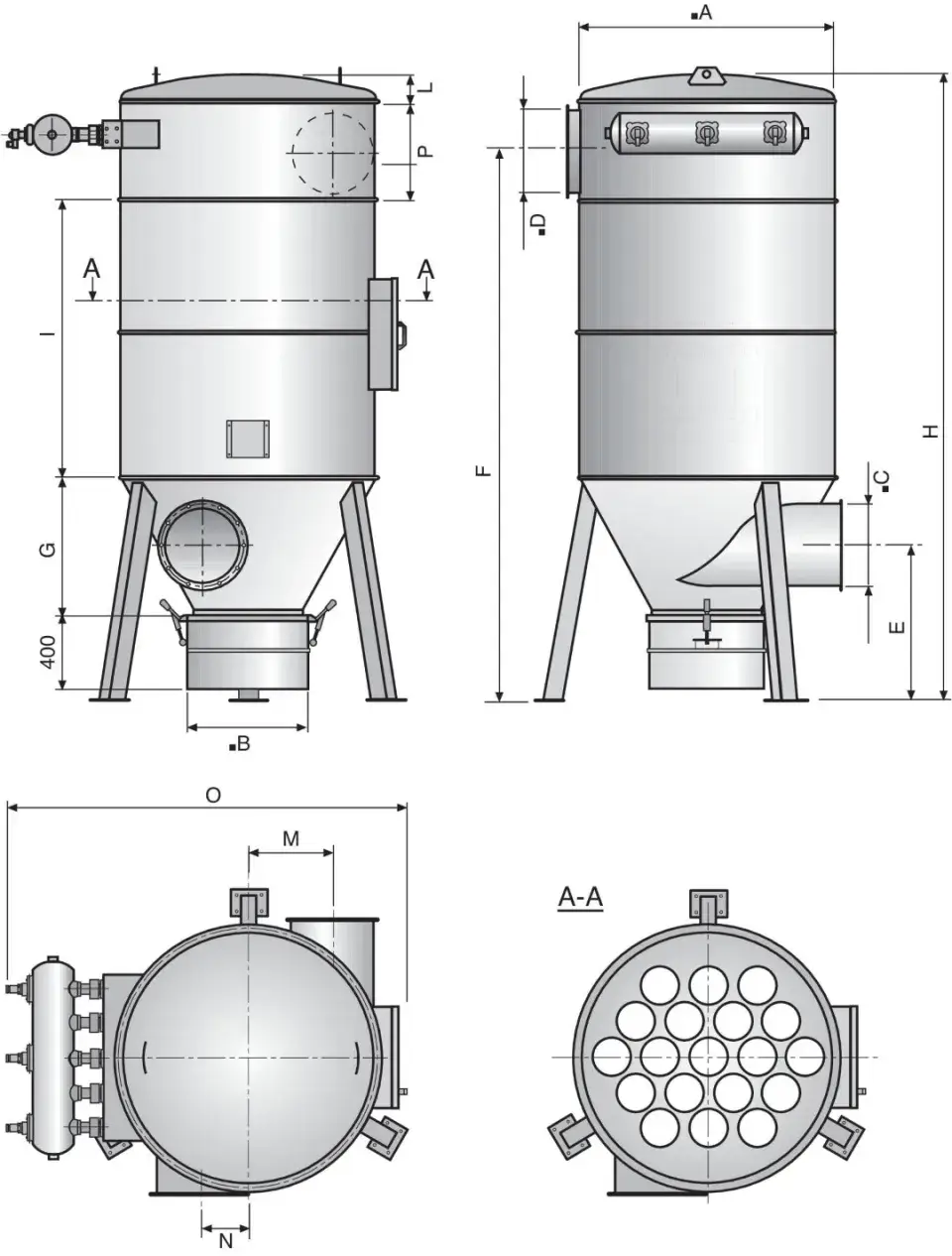

Technical drawings
Airalt/M specifications
| Model | Atex | Sleeves (nr) | Sleeve height (mm) | Sleeve diameter (mm) | Cleaning | Valves | No. Tanks | Tank Volume (lt) | Air volume (lt) | Containment capacity (m³) |
|---|---|---|---|---|---|---|---|---|---|---|
| Airalt/m 11/1.5 | Optional | 19 | 1500 | 123 | Pneumatic | 5×1″ | 1 | 16.6 | 87 | 5.5 |
| Airalt/m 14/2.0 | Optional | 19 | 2000 | 123 | Pneumatic | 5×1″ | 1 | 16.6 | 87 | 5.5 |
| Airalt/m 18/2.5 | Optional | 19 | 2500 | 123 | Pneumatic | 5×1″ | 1 | 16.6 | 87 | 5.5 |
| Airalt/m 26/2.0 | Optional | 35 | 2000 | 123 | Pneumatic | 7×1″ | 1 | 22.1 | 87 | 12.5 |
| Airalt/m 32/2.0 | Optional | 42 | 2000 | 123 | Pneumatic | 7×1″ | 1 | 22.1 | 87 | 12.5 |
| Airalt/m 33/2.5 | Optional | 35 | 2500 | 123 | Pneumatic | 7×1″ | 1 | 22.1 | 87 | 12.5 |
| Airalt/m 40/2.5 | Optional | 42 | 2500 | 123 | Pneumatic | 7×1″ | 1 | 22.1 | 87 | 12.5 |
| Airalt/m 41/2.0 | Optional | 54 | 2000 | 123 | Pneumatic | 9×1″ | 1 | 27.6 | 87 | 12.5 |
| Airalt/m 51/2.5 | Optional | 54 | 2500 | 123 | Pneumatic | 9×1″ | 1 | 27.6 | 87 | 12.5 |
| Airalt/m 61/3.0 | Optional | 54 | 3000 | 123 | Pneumatic | 9×1″ | 1 | 27.6 | 87 | 12.5 |
| Airalt/m 69/2.0 | Optional | 92 | 2000 | 123 | Pneumatic | 13×1″ | 1 | 38.6 | 87 | 12.5 |
| Airalt/m 87/2.5 | Optional | 92 | 2500 | 123 | Pneumatic | 13×1″ | 1 | 38.6 | 87 | 12.5 |
| Airalt/m 104/3.0 | Optional | 92 | 3000 | 123 | Pneumatic | 13×1″ | 1 | 38.6 | 87 | 12.5 |
| Airalt/m 121/2.0 | Optional | 156 | 2000 | 123 | Pneumatic | 19×1″ | 1 | 55.6 | 87 | – |
| Airalt/m 151/2.5 | Optional | 156 | 2500 | 123 | Pneumatic | 19×1″ | 1 | 55.6 | 87 | – |
| Airalt/m 181/3.0 | Optional | 156 | 3000 | 123 | Pneumatic | 19×1″ | 1 | 55.6 | 87 | – |
| Airalt/m 206/2.5 | Optional | 213 | 2500 | 123 | Pneumatic | 21×1″ | 1 | 60 | 87 | – |
| Airalt/m 247/3.0 | Optional | 213 | 3000 | 123 | Pneumatic | 21×1″ | 1 | 60 | 87 | – |
| Airalt/m 292/2.5 | Optional | 301 | 2500 | 123 | Pneumatic | 27×1″ | 1 | 77 | 87 | – |
| Airalt/m 350/3.0 | Optional | 301 | 3000 | 123 | Pneumatic | 27×1″ | 1 | 77 | 87 | – |
Handles
Pollutants captured
Talk to our engineers
Tell us about your process and we will specify the right Airalt filter for your facility.
