Karb
Eliminates gaseous emission pollutants, ensuring compliance with current international regulations.
The Karb range

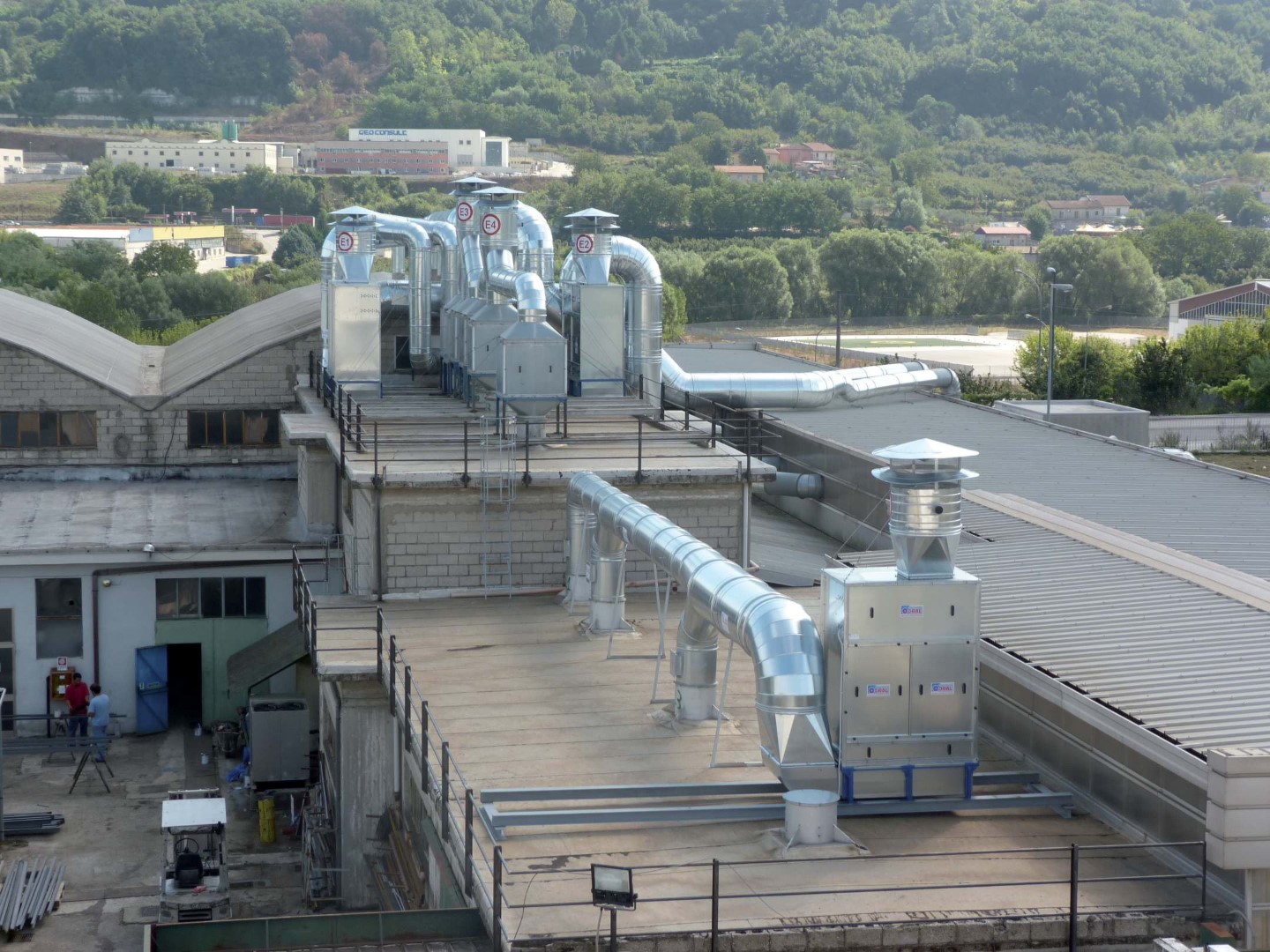

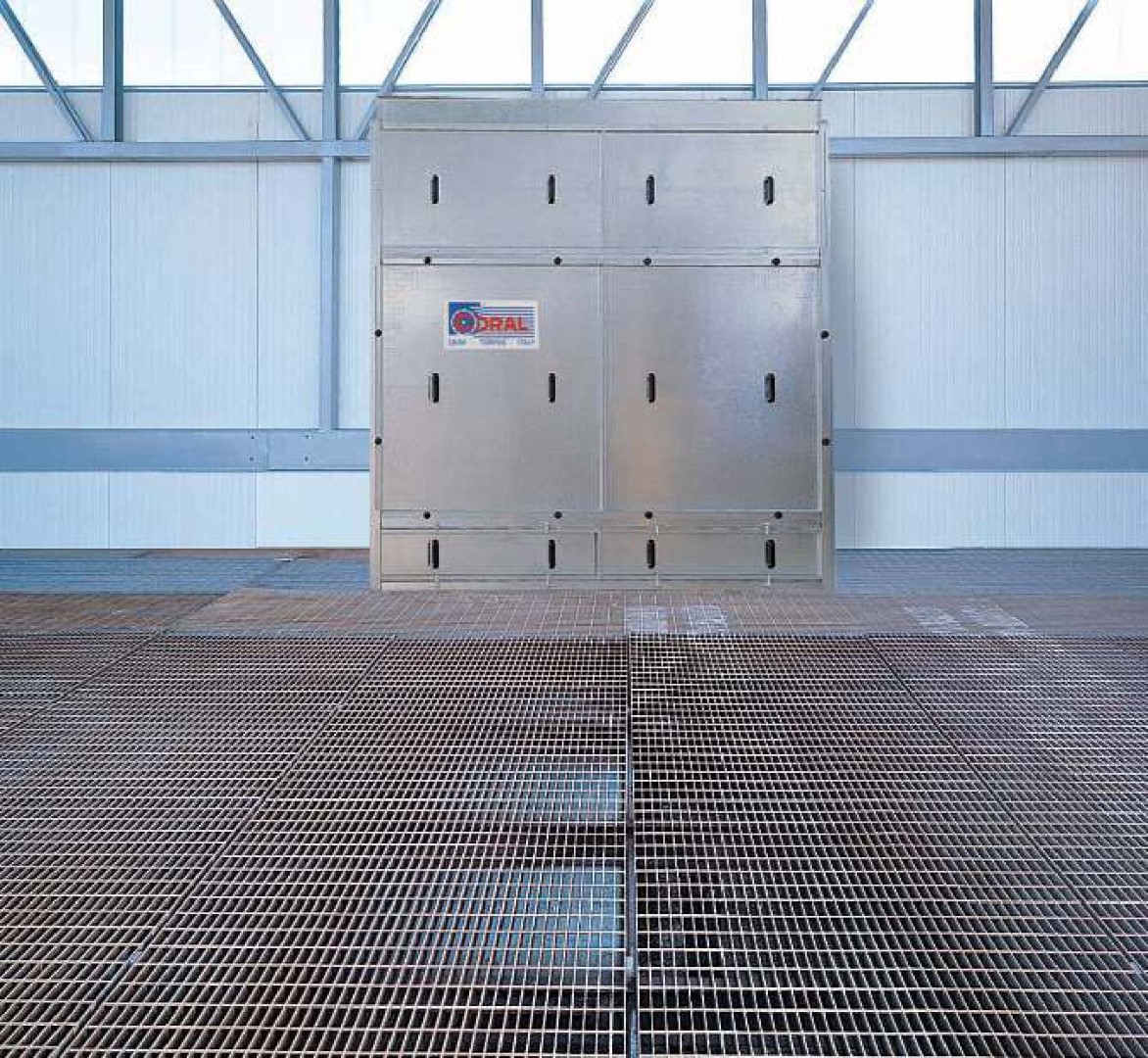

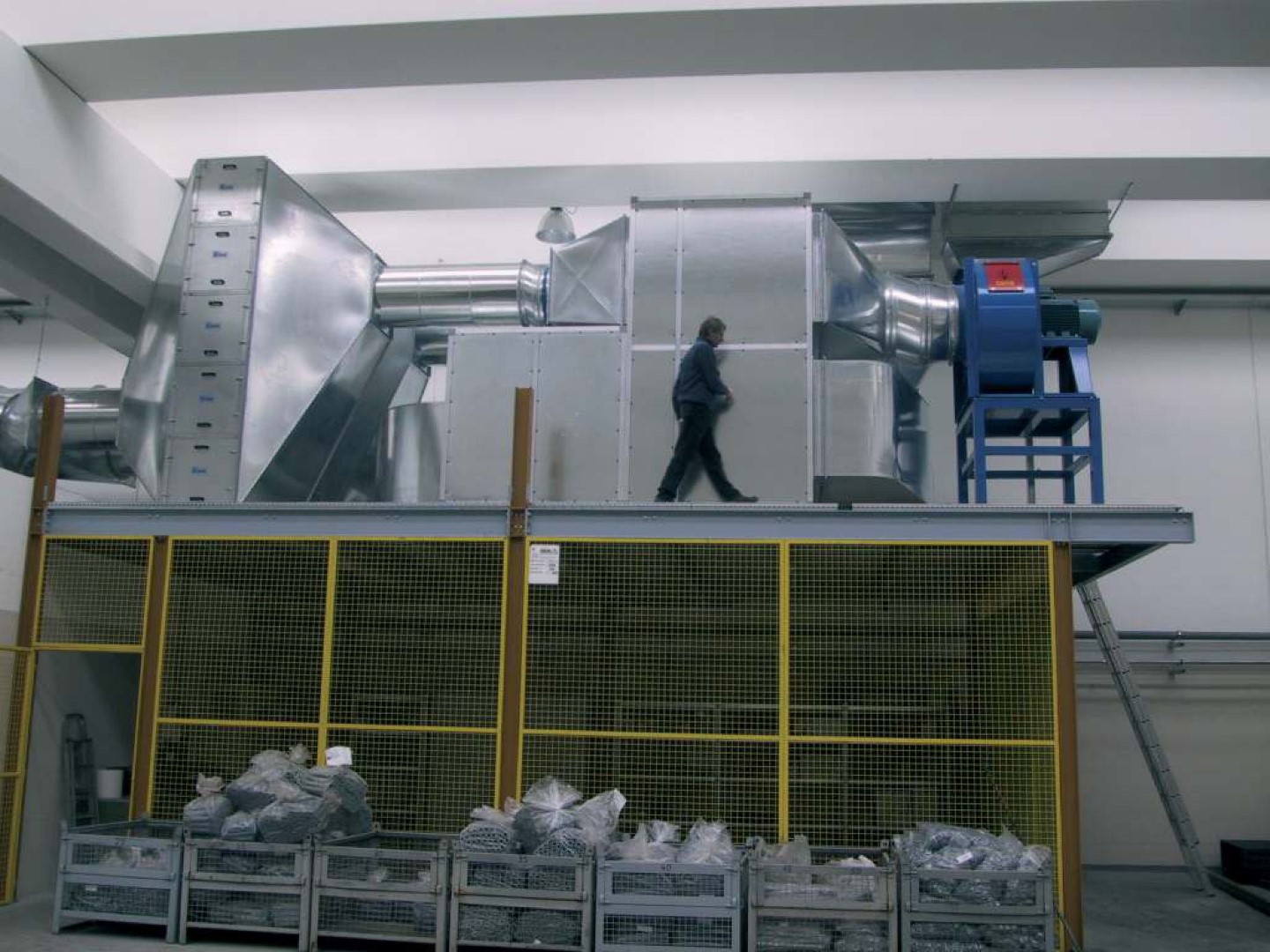

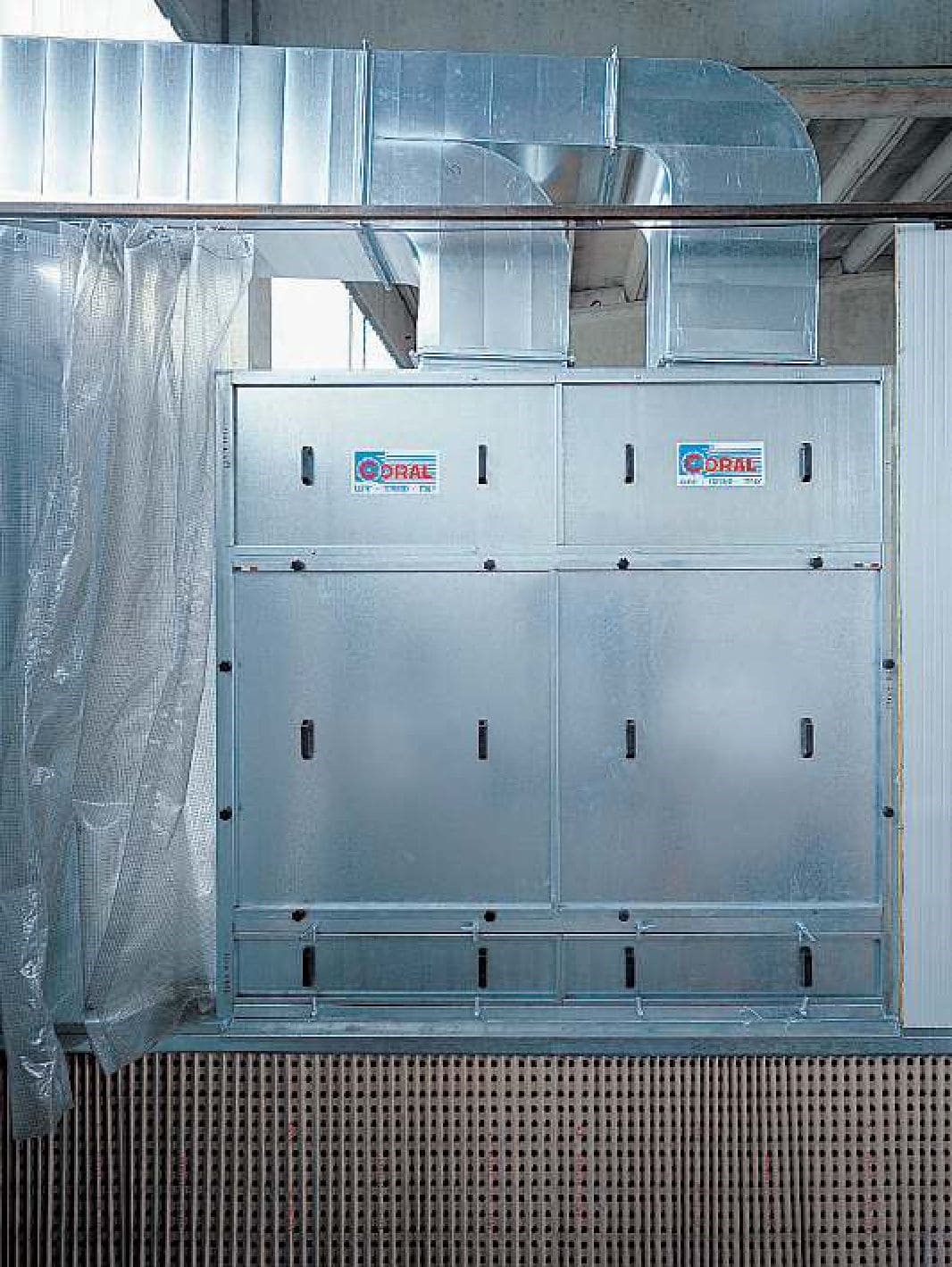

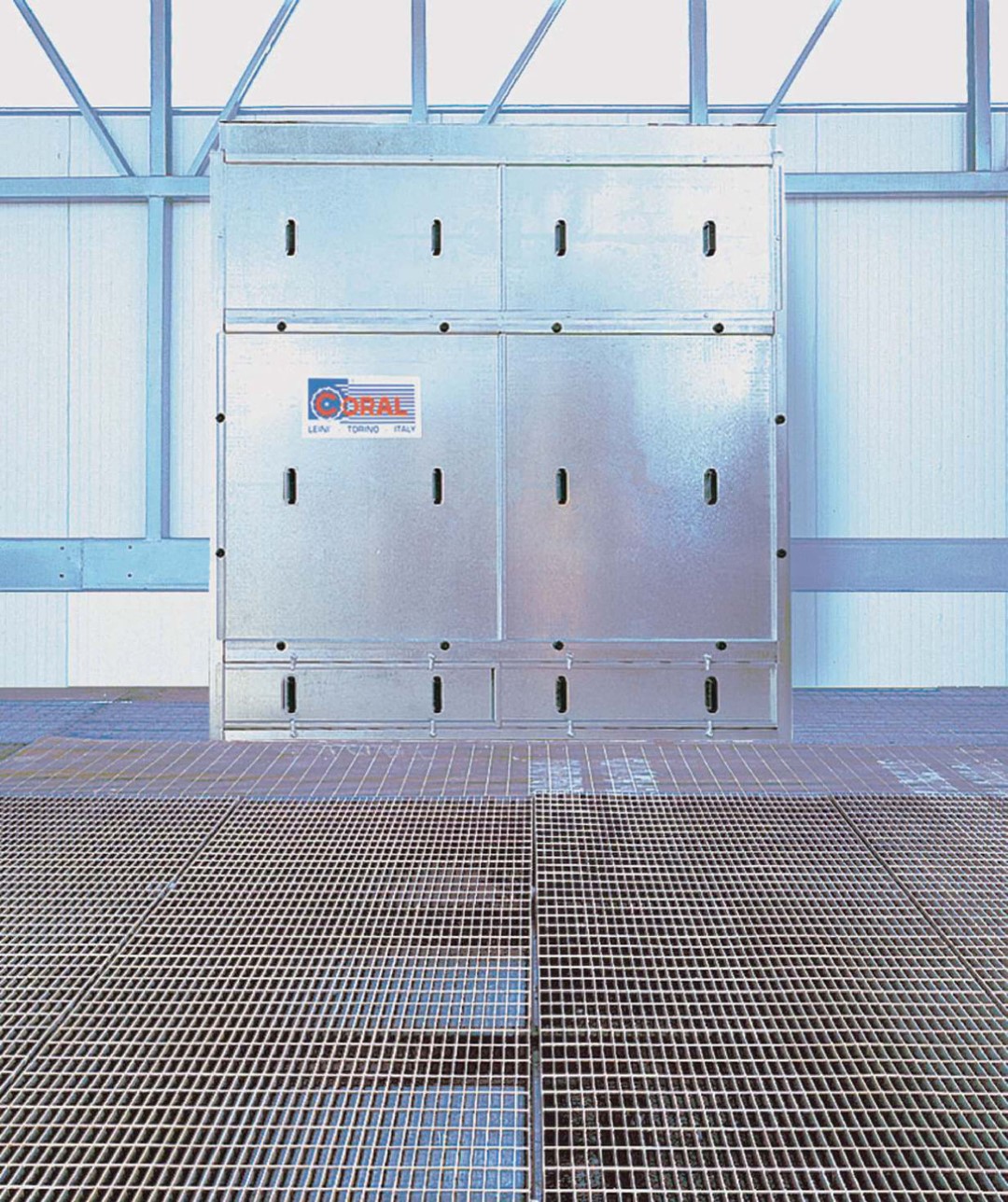

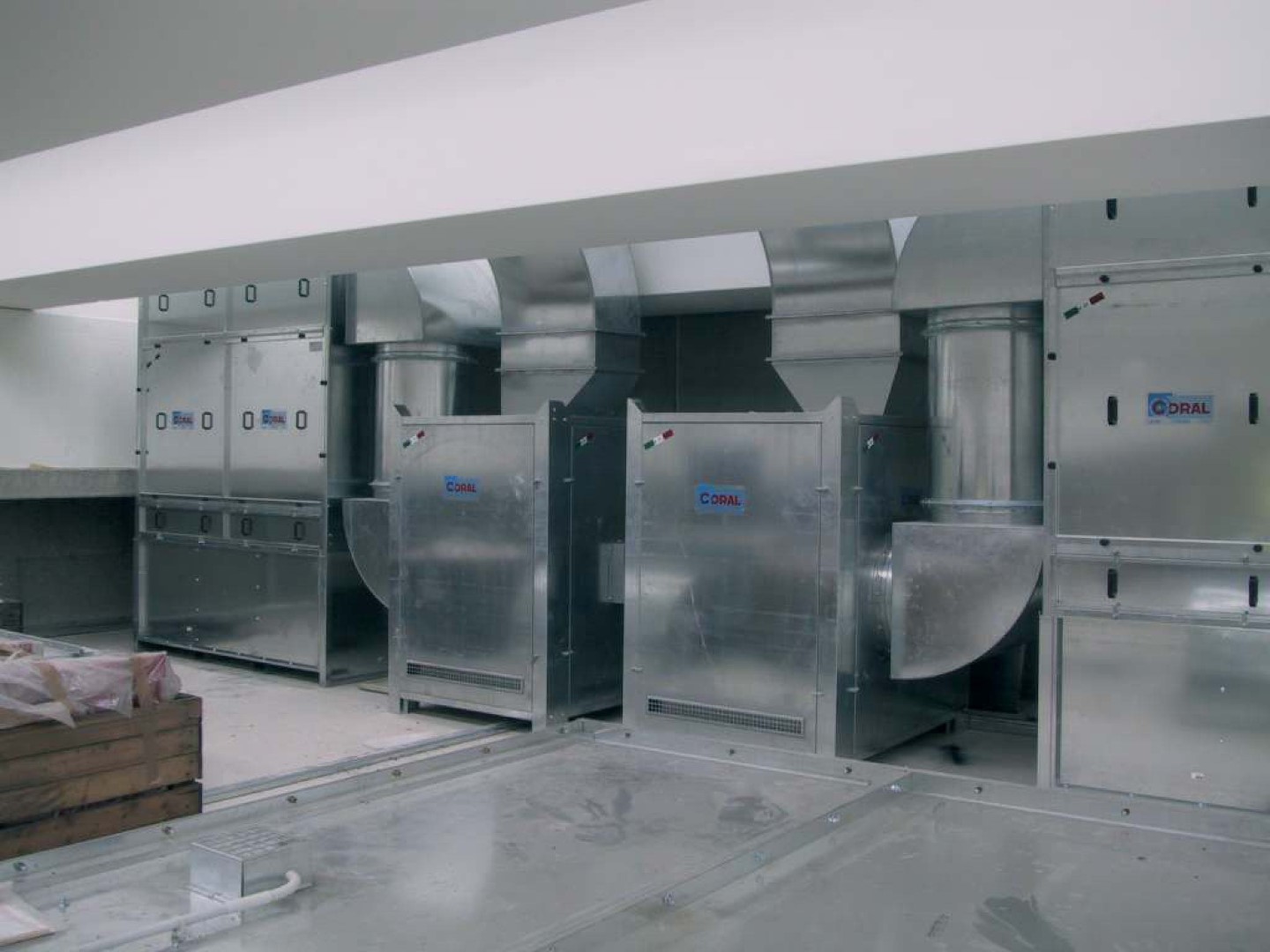

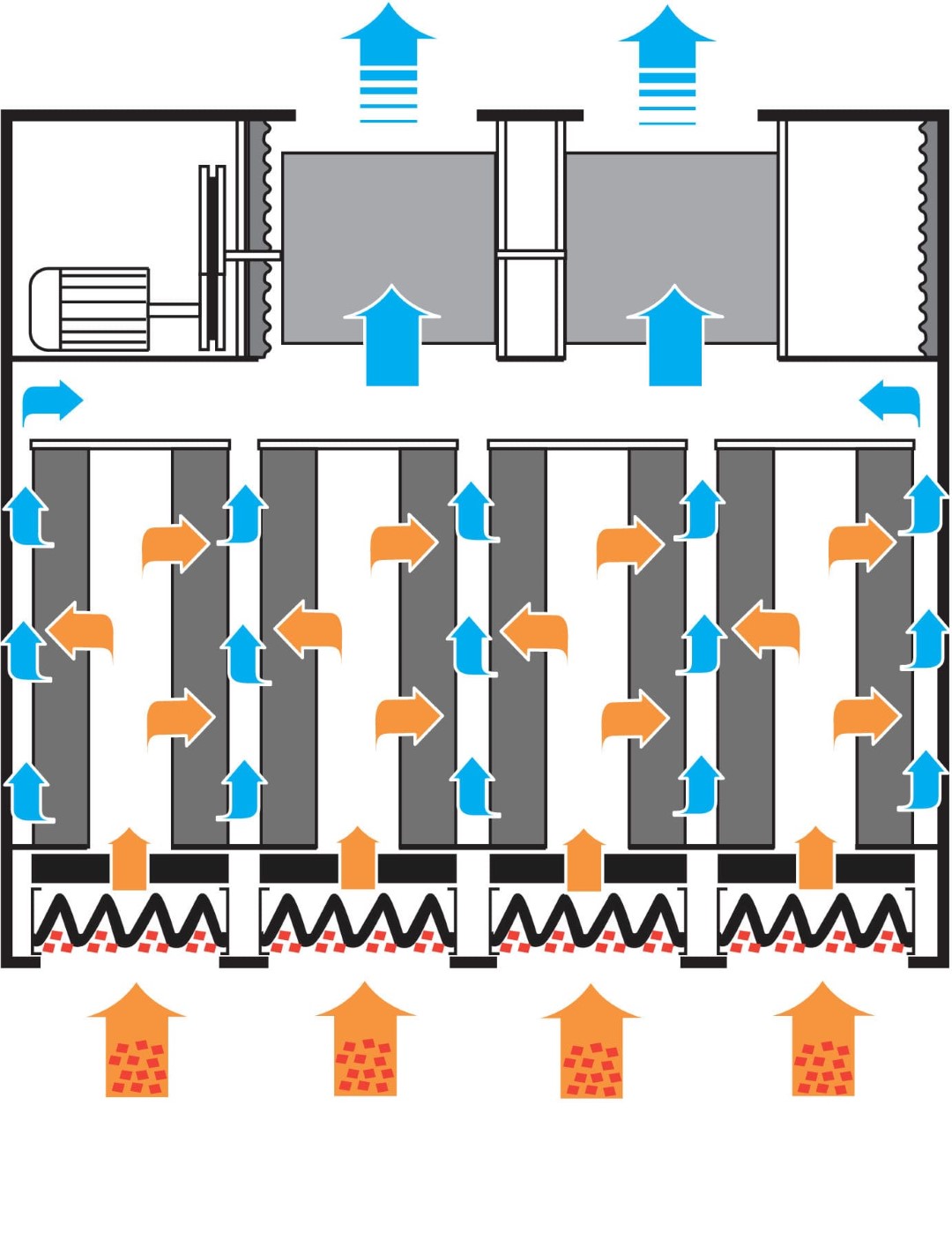

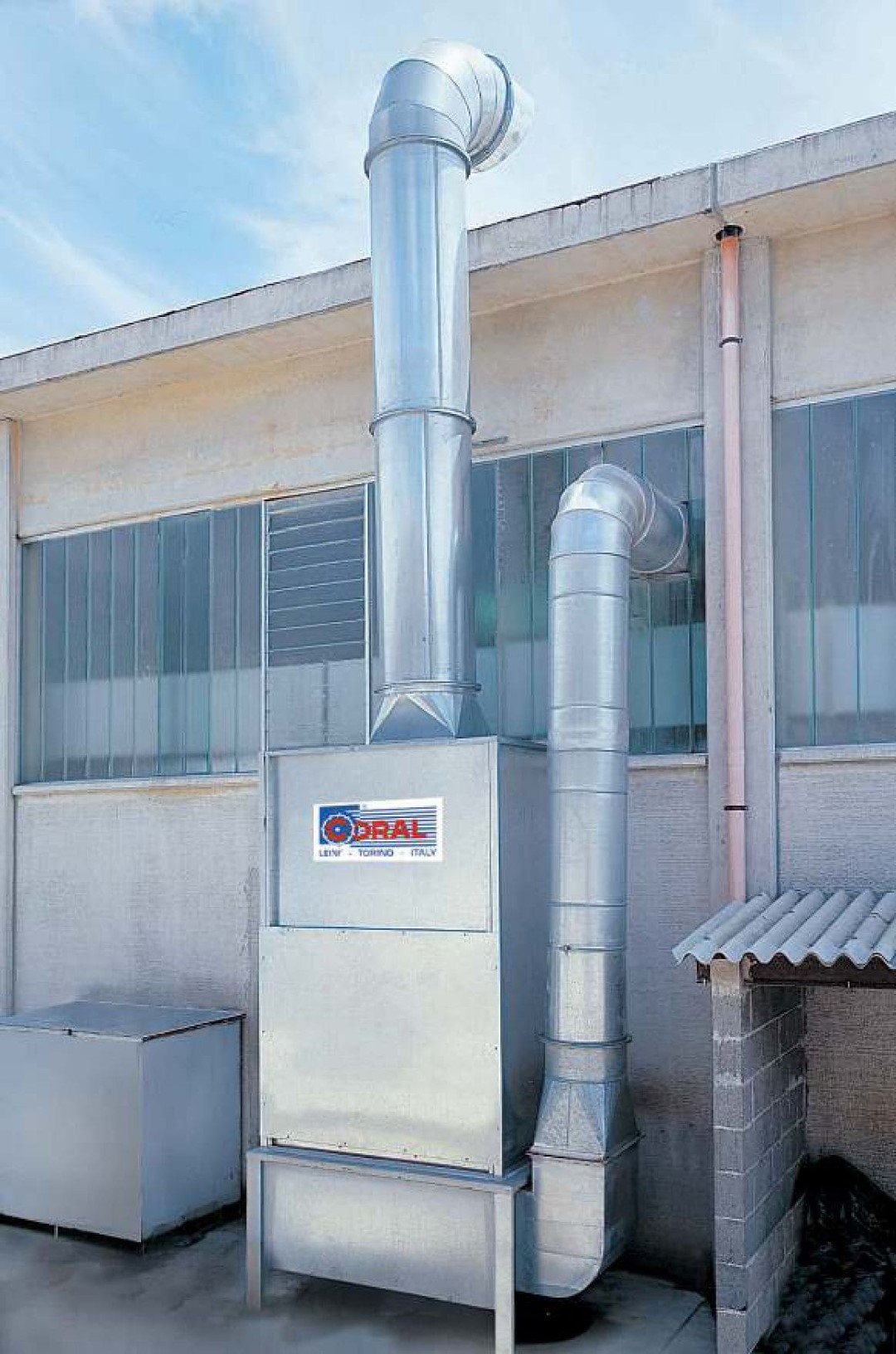

The Karb filter unit contains a large amount of activated carbon for high efficiency in the abatement and deodorization of pollutant emissions from paints, compounds and organic solvents. Solid pigments are captured by regenerable, front-accessible filters while gaseous organic solvents are absorbed by the activated carbon. A double-intake transmission fan creates vacuum operation. The sheet-metal construction is divided into three sections: filter, activated carbon and ventilation. The unit can be positioned on floors, with spray booths or on pressurized booths.
- Captures solid pigments via regenerable, front-accessible filters
- Absorbs gaseous organic solvents through activated carbon
- Double-intake transmission fan creates vacuum operation
- Sheet-metal construction with three sections: filter, activated carbon and ventilation
At a glance
Karb specifications
| Model | Prefilters | Carbon cartridges | Carbon weight (kg) | Bed thickness (mm) | Crossing speed (m/s) | Contact time (s) | Voltage (V) | Frequency (Hz) | Max flow (m³/h) | Max flow (cfm) | Power (kW) | Noise (dB(A)) | Height (mm) | Width (mm) | Depth (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Karb 3 | 6 | 6 | 330 | 80 | 0.5 | 0.16 | 230/400 | 50 | 9500 | 5590 | 3 | 71 | 2320 | 1770 | 1115 |
| Karb 4 | 6 | 6 | 330 | 80 | 0.5 | 0.16 | 230/400 | 50 | 12000 | 7062 | 4 | 71 | 2320 | 1770 | 1115 |
| Karb 5.5 | 8 | 8 | 440 | 80 | 0.5 | 0.16 | 400/690 | 50 | 16000 | 9416 | 5.5 | 71 | 2200 | 2320 | 1115 |
| Karb 7.5 | 8 | 8 | 440 | 80 | 0.5 | 0.16 | 400/690 | 50 | 19500 | 11475 | 7.5 | 71 | 2200 | 2320 | 1115 |
| Karb 9.5 | 10 | 10 | 550 | 80 | 0.5 | 0.16 | 400/690 | 50 | 22000 | 12947 | 9.5 | 73 | 2370 | 2740 | 1115 |
| Karb 11 | 10 | 10 | 550 | 80 | 0.5 | 0.16 | 400/690 | 50 | 29000 | 17066 | 11 | 73 | 2370 | 2740 | 1115 |
Pollutants captured
