Venturi

The Venturi range

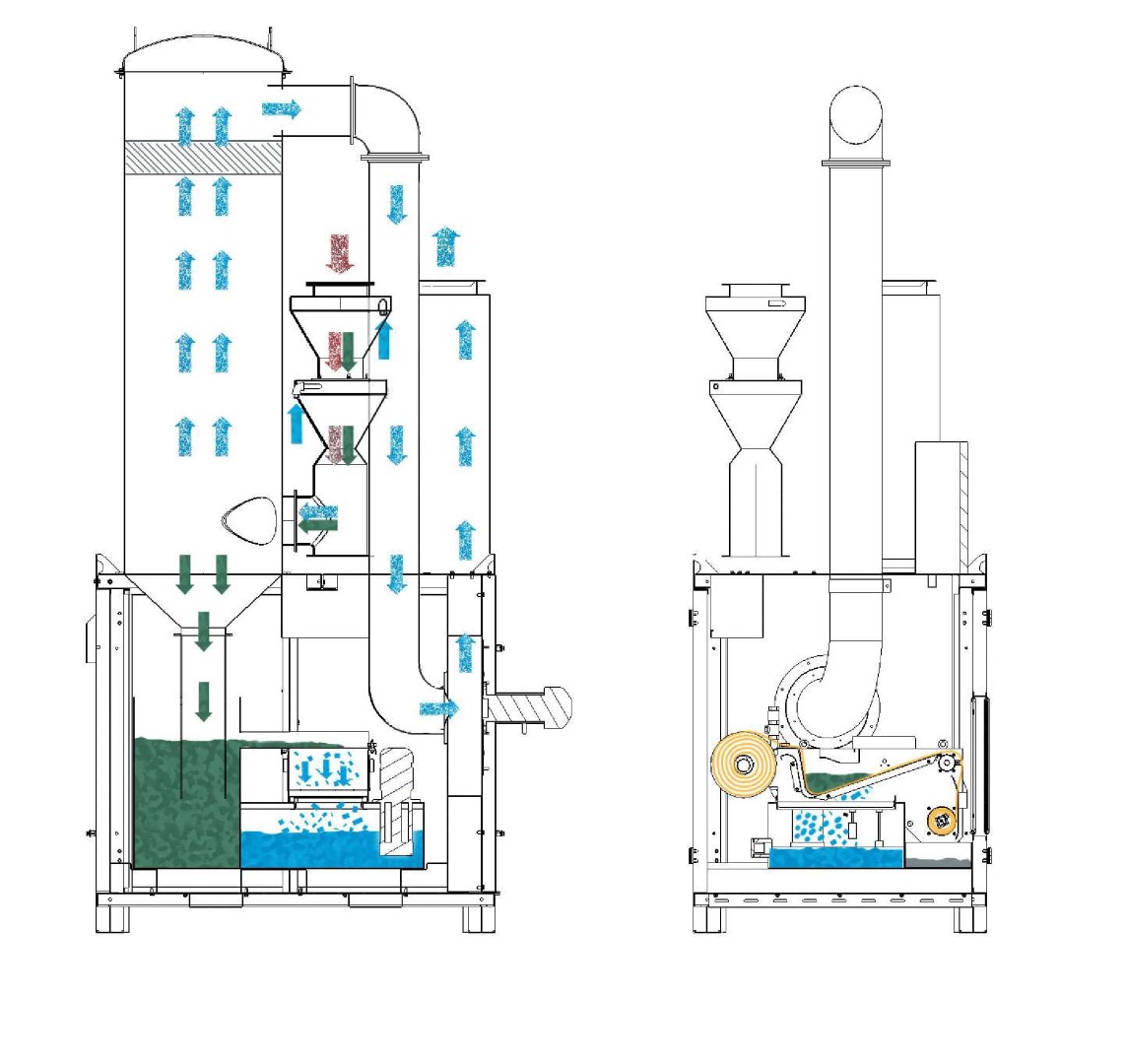

Water filter applicable in filtration systems for production processes that generate water-insoluble dust, e.g. metals, composites, resins and aggregates. It is designed for hazardous dusts that produce glowing particles capable of igniting fires or explosions in conventional dry filtration systems. Dusty air, drawn in by a high-pressure fan, passes through venturi throats where it is accelerated in sequence, while water recirculated by a pump is fed in; the water atomizes into fine droplets that capture the pollutants, and centrifugal separation in the cyclone removes the contaminated droplets. Available in an ATEX version for potentially explosive atmospheres.

• Equipped with a high-pressure fan and a water recirculation pump
• Extremely quiet: fan and pump located in a soundproof box
• Appropriate recirculating-water cleaning systems based on the pollutant type
• Avoids fire, explosion and aluminothermia (thermite) generation
• Available in an ATEX version for potentially explosive atmospheres
• Equipped with an inverter for optimal operation adjustment
