Zincocar DF

Suction booth with high-performance horizontal cartridges for suction and filtration of wood sanding dust, steel grinding dust, inert material processing dust, surface metallization dust and welding fumes.

Enquire

Woodworking Filters

The Zincocar DF range

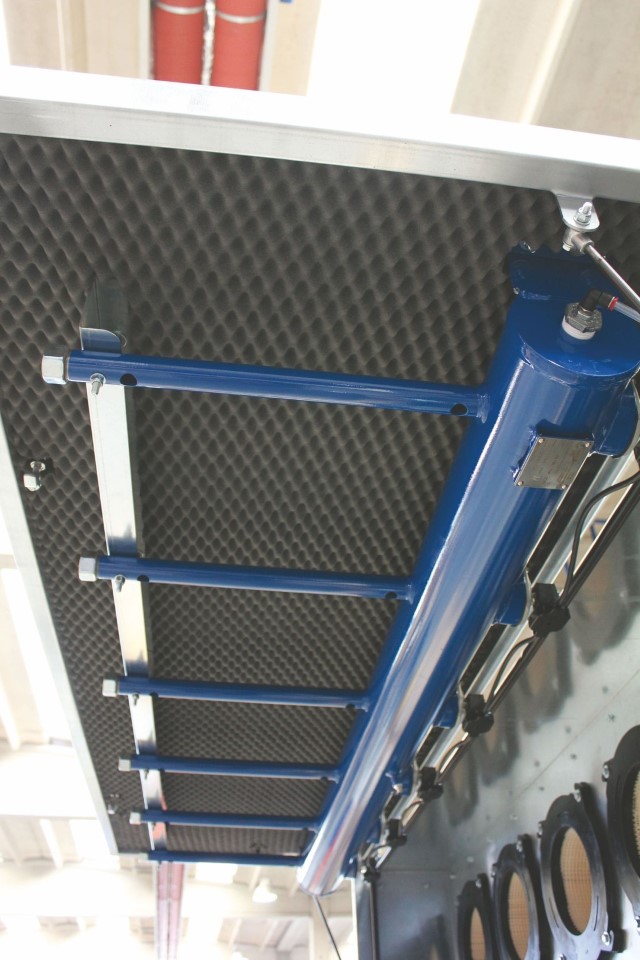

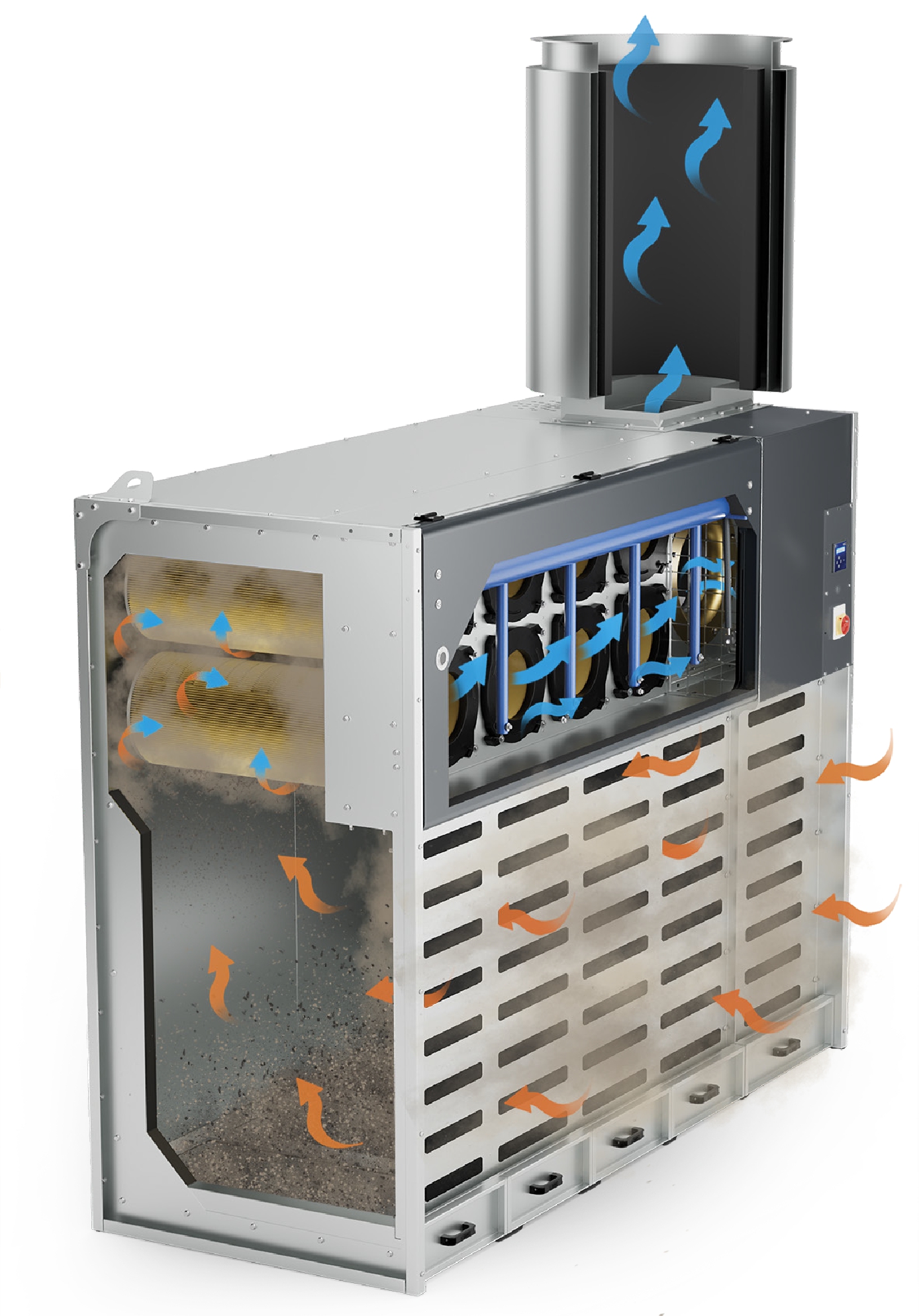

Zincocar DF is a suction booth (suction and filtering wall) with high-performance horizontal cartridges for the suction and filtration of wood sanding dust, steel grinding dust, inert material processing dust, surface metallization dust and welding fumes. It is engineered for environments where localized extraction is impractical, where extraction piping is complicated to install, or where air-conditioned spaces require recirculation to minimize energy waste. The sheet-metal cabins use a soundproofed centrifugal extractor to draw air through cartridge filters with 99.9% efficiency, expelling purified air while maintaining regulatory suction speeds, and include cyclic programmers for automated compressed-air cartridge cleaning. The range covers seven models.

Zincocar DF 1.54 cartridges, 60 m2, 6,000 m3/h, 3 kW Zincocar DF 28 cartridges, 120 m2, 8,000 m3/h, 4 kW Zincocar DF 2.510 cartridges, 150 m2, 10,000 m3/h, 5.5 kW Zincocar DF 312 cartridges, 180 m2, 12,000 m3/h, 7.5 kW Zincocar DF 416 cartridges, 240 m2, 16,000 m3/h, 8 kW Zincocar DF 520 cartridges, 300 m2, 20,000 m3/h, 11 kW Zincocar DF 624 cartridges, 360 m2, 24,000 m3/h, 15 kW

Plug and play installation with immediate commissioning

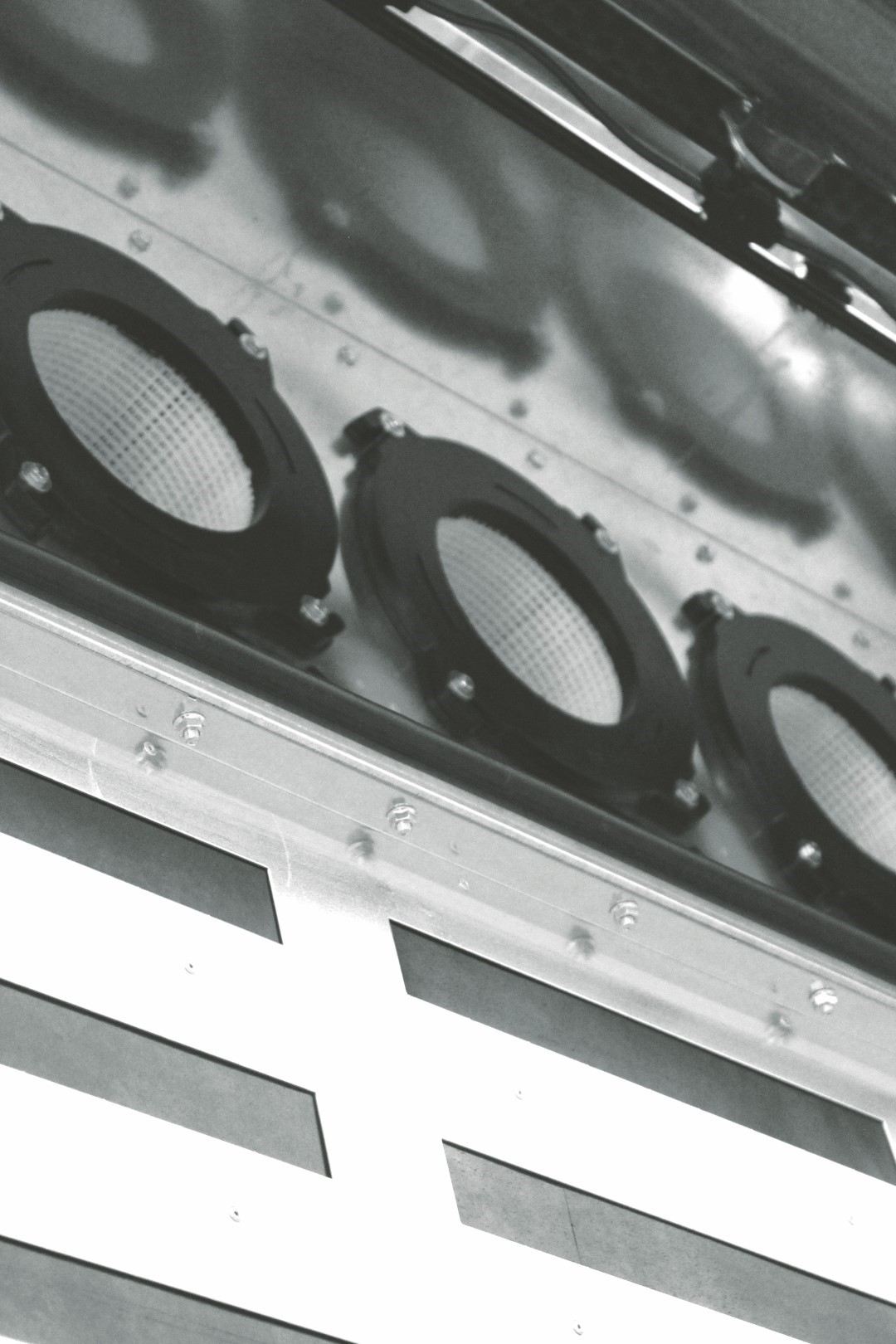

Easily accessible horizontal cartridges for simple maintenance
Flexible positioning to suit production requirements
Maximum filtration efficiency (99.9%)
Energy-efficient for air-conditioned work areas

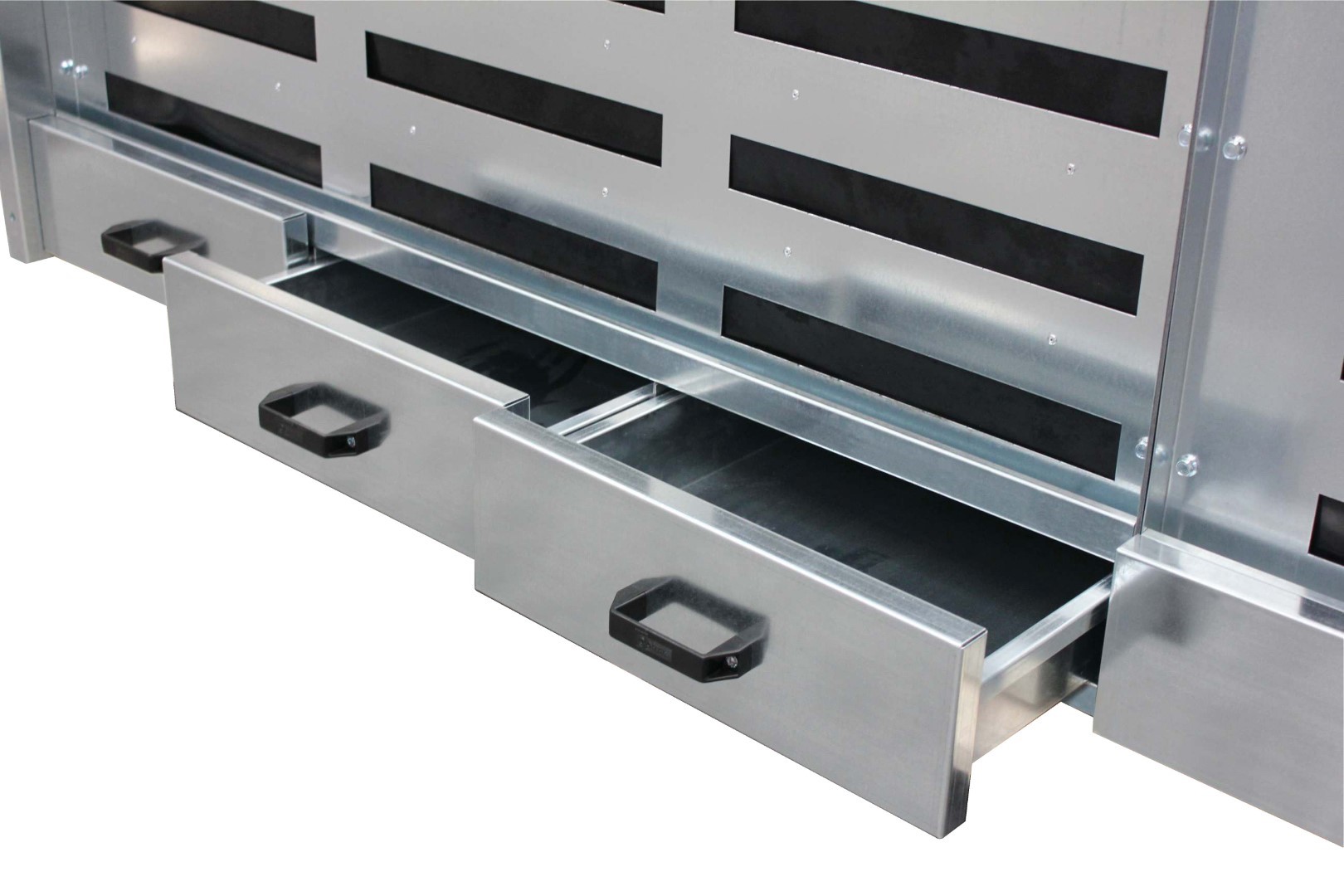

Easy dust collection via removable containers
Optional muffler for noise reduction

Enquire about this product

Specifications

At a glance

7Models available

6,000–24,000 m3/hMaximum flow rate

60–360 m2Filter surface area

99.9%Filtration efficiency

Zincocar DF specifications

Model	Cartridges (nr)	Filter surface (m2)	Filter material	Max flow rate (m3/h)	RPM	Power (kW)	Noise dB(A)	Voltage	Frequency	Tanks (nr)	Tank volume (lt)
Zincocar DF 1.5	4	60	Cellulose (M-CEL)	6000	2851	3	72	400 V	50 Hz	3	120
Zincocar DF 2	8	120	Cellulose (M-CEL)	8000	2910	4	72	400 V	50 Hz	4	152
Zincocar DF 2.5	10	150	Cellulose (M-CEL)	10000	2900	5.5	73	400 V	50 Hz	5	187
Zincocar DF 3	12	180	Cellulose (M-CEL)	12000	2910	7.5	73.4	400 V	50 Hz	6	240
Zincocar DF 4	16	240	Cellulose (M-CEL)	16000	2910	8	75	400 V	50 Hz	8	304
Zincocar DF 5	20	300	Cellulose (M-CEL)	20000	2900	11	76	400 V	50 Hz	10	374
Zincocar DF 6	24	360	Cellulose (M-CEL)	24000	2910	15	76.4	400 V	50 Hz	12	480

Handles

Pollutants captured

Wood sanding dustSteel grinding dustInert material processing dustSurface metallization dustWelding fumes

Talk to our engineers

Tell us about your process and we will specify the right Zincocar DF unit for your facility.
